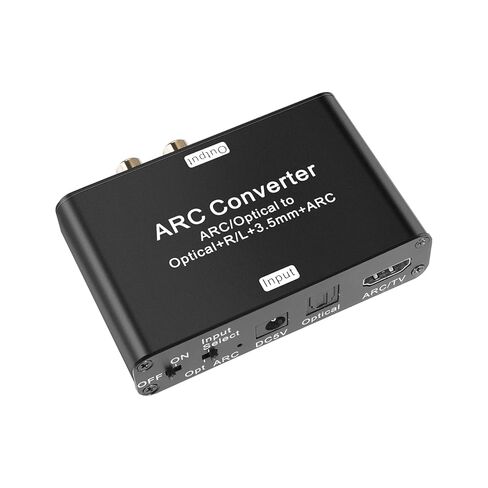

HDMI ARC Audio Extractor With Digital Optical Stereo RCA L/R Coaxial SPDIF, 3.5mm Jack ARC Adapter, 192KHz DAC Converter

KWD 11.500
KWD 12
– 1 +

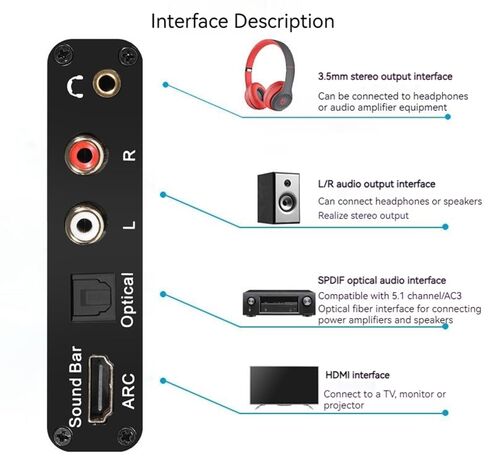

Special Features

  • This HDMI audio return & DAC audio converter can return the sound of a TV that supports ARC function to the adapter's ARC loop output interface, optical fiber,Coaxial, and 3.5mm headphone jack output through the HDMI/ARC interface.
  • Supports optical digital The audio signal is converted into a stereo analog signal, and it can support optical fiber and ARC output at the same time, which perfectly solves the interface compatibility problem between the TV and the audio system.This product is very suitable for home theaters, teaching, training structures, conference rooms, home appliance stores and other places.
  • Support HDMI ARC, optical fiber, coaxial input switching function; Support optical, coaxial, RCA stereo, 3.5mm stereo headphone audio; 3.5mm stereo headphone port equipped with high-performance audio amplifier.
  • Support transmission of 192KHz audio sampling rate; Optical fiber coaxial interface supports 5.1 channel transmission(Signal pass-through).
  • Support optical fiber or ARC input, optical fiber, ARC output (signal pass-through); ARC ,RCA and 3.5mm headphone output volume can be controlled by TV; Support volume memory.

Description

Connection and Operation:
1.Connect the ARC/TV port of the converter to the HDMI/ARC port of the TV through an HDMI cable.
Note: Please connect to the HDMI interface with the "ARC" mark! Otherwise, audio output cannot be obtained
2.You can also connect the optical interface of the converter to the optical interface of the TV through an optical fiber cable.
3.Use optical fiber cable, coaxial cable or RCA cable and 3.5mm audio cable to connect to the amplifier system.
4.You can also use an HDMI cable to connect the ARC/Sound Bar interface of the converter to the Sound Bar
5.Connect the USB power supply cable to the DC 5V interface of the converter. 6.Turn the power switch to the ON position.
7.Switch to the corresponding channel by flipping the switch.

NOTES:
Please use the machine as the instruction listed to keep the long lifetime of it.
1. Please do not expose this unit to the damp, high-temperature, dusty, erosive, or oxidizing environment.
2. All parts will be free from the strong shake, hit, fall.
3. Please do not touch the power adapter plug with wet hands.
4. Please hold the plug when unplugging. Do not pull the power cable directly.
5. Please turn the unit off when it is not in use for a long period of time.
