Fender created the Big Apple Strat in the 1990s to marry some of the most popular Strat tones (positions 2/4) with the humbucker tones of the guitars made by their competitors (positions 1/3/5):
5: Neck HB
4: Neck SC
3: Neck HB + Bridge HB
2: Neck SC + Bridge SC
1: Bridge HB
Our HH1 scheme employs Big Apple wiring, but our second position uses one screw coil and one slug coil from the pickups to retain hum-canceling. We use a 500k volume pot since this is the value most humbuckers are voiced with, but we've added functionality that drops the pot's value to 250k in the 2/4 positions, so the “Fender” positions will sound most convincing.
We've left the tone-control wiring alone, using Fender's configuration: a tone control for the 1-position (bridge pickup), and the other tone control for the other four switch positions.

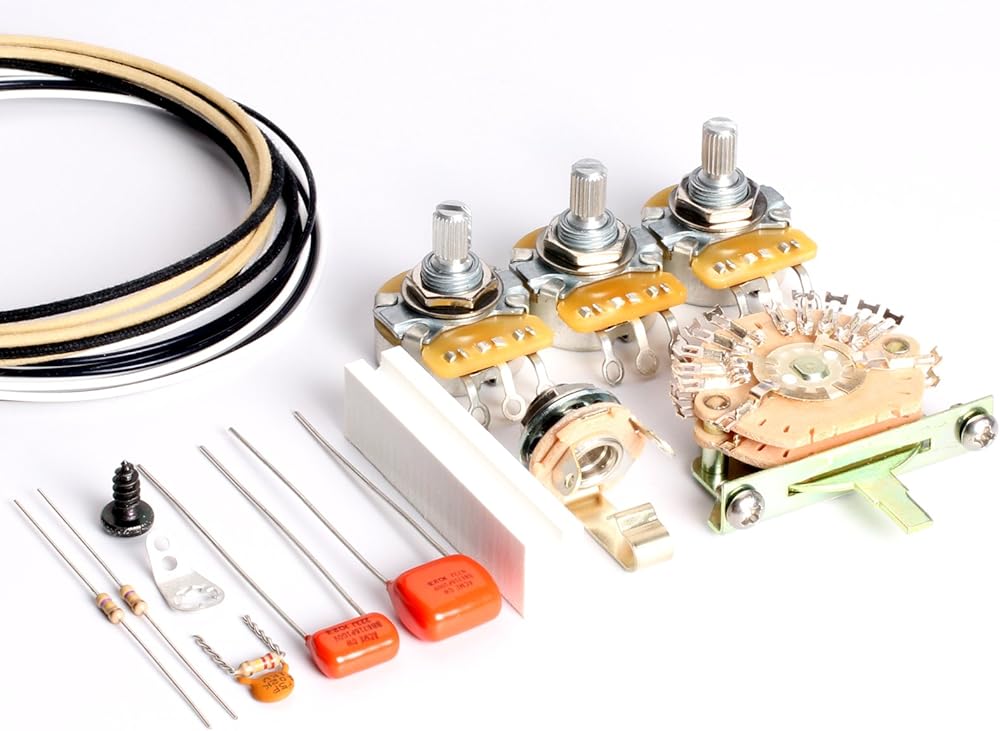

Kit contents:
(1) Capacitor, .022µF Orange Drop
(1) Capacitor, .047µF Orange Drop
(1) Jack, Switchcraft, 1/4" Mono
(1) Pot, CTS 250K Audio, Low Torque (.250" Bushing Length)
(2) Pot, CTS 500K Audio, Low Torque (.250" Bushing Length)
(2) Resistor, 470K
(1) Screw for Shielding Ground Lug
(1) Shielding Ground Lug
(1) Switch, 5-Way, Oak-Grigsby, 4-Pole Superswitch, Narrow
(1) Treble Bleed Kit for Humbuckers
(1) Wiring Loom, Strat, HH
(3') Wire, 22 AWG Cotton Push Back w/ Tinned Overcoat, Black
(3') Wire, 22 AWG Cotton Push Back w/ Tinned Overcoat, White
(3') Wire, 22 AWG Stranded Silver-Plated Copper, Black PTFE
(3') Wire, 22 AWG Stranded Silver-Plated Copper, White PTFE
(1) Professional, Fully-Illustrated Wiring Diagram
