3060 Table All-Metal Y-axis Extension Base Kit with Dual Linear Guides, 300 x 600mm Working Area and 600mm Travel

3060 Y axis extension base table for AnoleX CNC Machine 3020-Evo/3030-Evo Pro
The extension base expands the y-axis of 3020-Evo/3030-Evo Pro, and increases the Y-axis travel to 600mm/23.62". You can get a larger operating space and processing area.

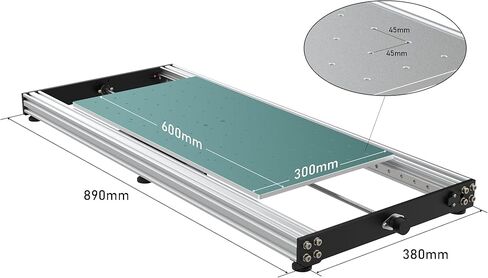

The extension base comes with a 300*600*8mm aluminum plate, in which 6*8 M5 screw holes are neatly distributed, and the distance between the screw holes is 45mm. The surface of the anodized aluminum plate has better gloss and wear resistance. (Due to the transportation process, each position of the aluminum plate table is not absolutely horizontal)

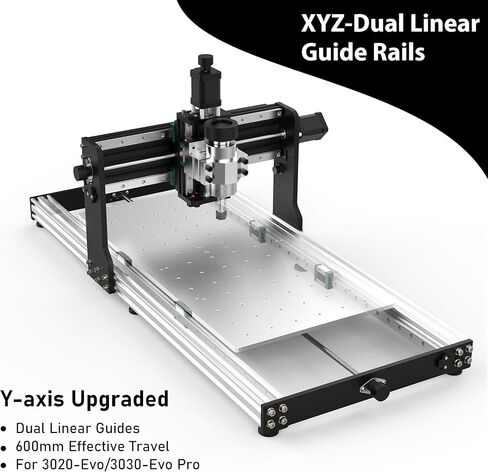

The Y-axis dual linear guide rails of the extension base, combined with the 3020Evo original X&Z-axis dual linear guide rails, have completely improved the accuracy of each axis of the machine. Which greatly improves the stability of the machine, makes it easier to engrave various materials, and reduces the repeatability of operations

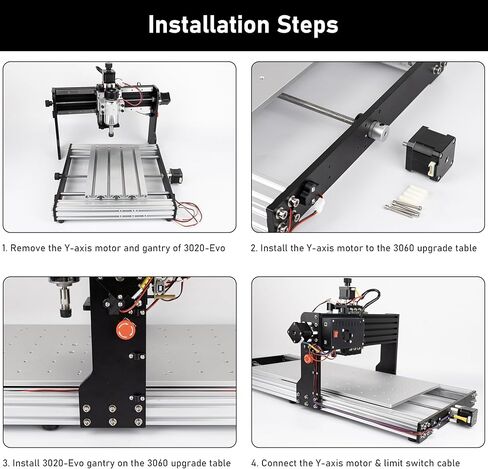

The extension base is pre-installed as a whole and can be used immediately upon receipt. You only need to replace the Y-axis stepper motor and the gantry part of the 3020-Evo/3030-Evo Pro and connect the pre-arranged limit switch cables and Y axis motor cable on the base.
Make yours cost-effective and save money by using your current CNC Machine with a base upgrade. You don't need to invest more time and money in complicated assembly, and you can get a more stable and efficient machine with a larger size

What's in the Package:
1 x Y-axis Extension Table
1 x Spacer Template Tool
1 x Y-axis Stepper Motor Cable
1 x User Manual
4 x Screw
4 x Round Spacer
