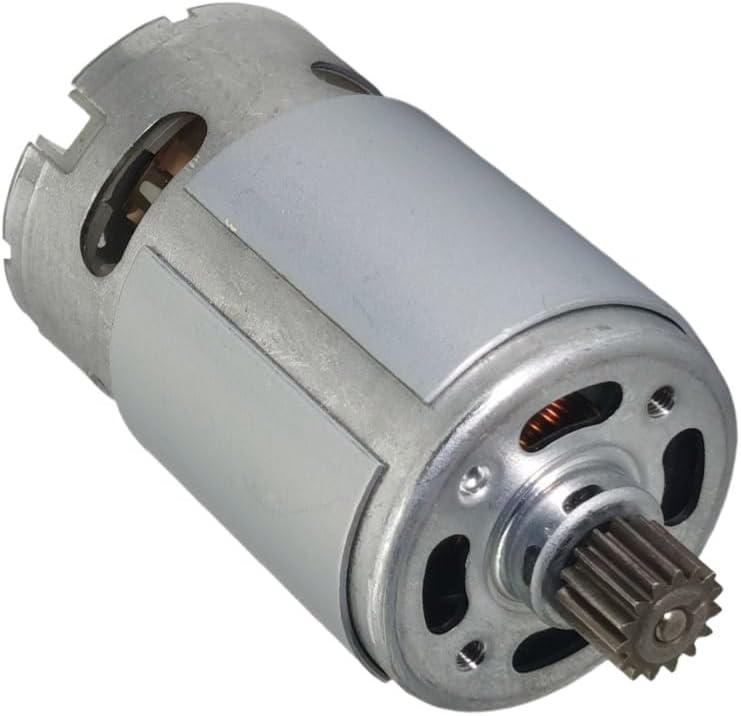

The RS550 (with gear teeth) DC Brushed Motors are specially designed for rechargeable lithium battery power tools, such as lithium electric drill, electric saw, electric screwdriver, and etc.

Features:
- High-speed and high torque
- High-power, low noise and long life

Parameters:
- Motor type: DC brushed motor
- Support voltages: 9.6V / 10.8V / 12V / 14.4V / 16.8V / 18V / 21V / 25V
- Support gear teeth number: 9 / 11 / 12 / 13 / 14 / 15
- No load Speed 20000-30000RPM
- Rated Power: 80W (approx.)
- Gear Material: Metal
- Shaft Size: 3.175mm(diameter) * 12.5mm(length)
- Motor Storage:
- Motor Installation Size: 2 M3 screws, Spacing 25mm
- Motor Total Weight: 220g (approx.)
- Motor Use Temperature: 0℃-50℃
- Motor Storage:
- Temperature: 0℃-40℃
- Humidity: 15%-90% RH

Notes:
The RS550 motor has multi-voltage and multi-gear teeth combinations, which can be adapted to many electric power drills on the market, but there are too many brands and models of power tools, which makes it impossible for us to identify them all, so please compare them carefully before an order.

How to choose a motor for a power tools:
1. Confirm your motor model is RS550 or motor diameter (about 37.2mm), and motor body length (about 57mm), and total length (about 75.1mm).
2. Confirm the voltage of your motor (DC9.6~25V) and choose a motor with the same or similar voltage.
3. Confirm the number of teeth of your motor (9~15 teeth), make sure to choose the motor with the same number of teeth, and verify that the outer diameter and thickness of the gears are the same or similar.

Package:
- 1 x RS550 motor (with gear)
