Specification:
Features:
Adopted of high quality carbide tips, exquisite workmanship, in use.
Easy to use, not easy to .
Suitable for processing of ordinary steel and ordinary stainless steel, such as 45 steel, steel, stainless steel 201, 304 and other soft material.
This set includes 10 pcs carbide inserts, so it provides convenience to replace the broken .
Good chemical stability, heat resistance, good wear resistance, high hardness.
Specifications:

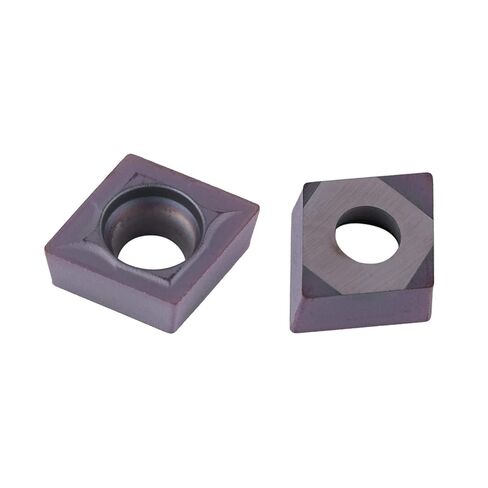

Model: CCMT09T304 VP15TF
Material: carbide
Size: 14x 9 x 4mm/0.55 x 0.35 x 0.16inch (1-3mm error)
Color: bronze
Quantity: 10 PCS
Blade description:
C = blade shape, C is 80 degrees
C = clearance angle is 7 degrees( with clearance angle is single blade)
M = blade tolerance(You can ignore it)
T = symbol of the hole slot(You can ignore it)
09 = cutting is 9mm
T3= the blade thickness is 3.97 mm
04 = R degrees of Angle (02 = R0.2, 04 = R0.4, 08 = R0.8)
VP15TF = processing material
Packaging: plastic box(yellow, red, blue random)
Package Included:
10 x CNC Carbide Tips Inserts
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
