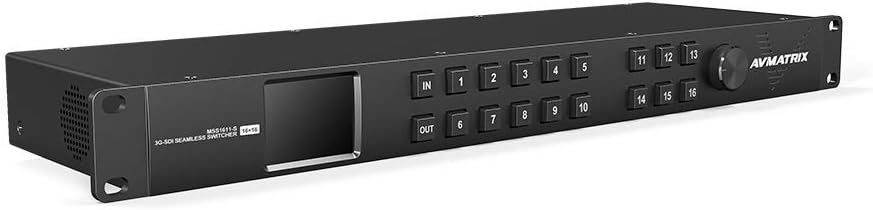

Avmatrix MSS1611-SAVMatrix MSS1611-S Seamless SDI 16x16 Matrix Switcher, Clena Switch Without any Black Screen on Each Input, 16x16 SD/HD/3G-SDI Auto-Detect Inputs, Up/Down Scaling on SDI, Front Panel Buttons

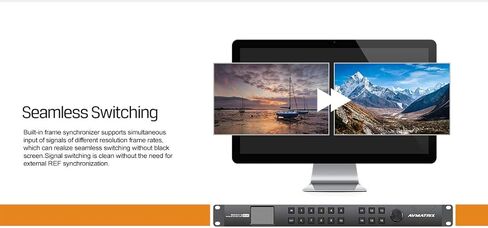

Built-in frame synchronizer supports simultaneous input of signals of different resolution frame rates, which can realize seamless switching without black screen.Signal switching is clean without the need for external REF synchronization.

Key Features:
- Clean switch without any black screen on each input
- 16x16 SD/HD/3G-SDI auto-detected inputs

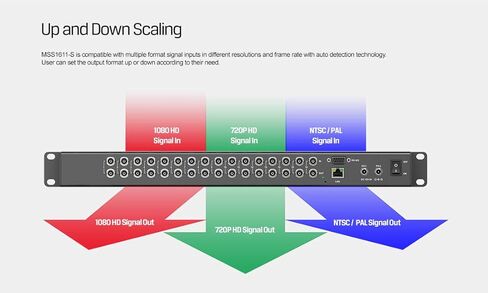

- Up/down scaling on SDI outputs
- Front panel buttons and knob control with LDC display
- PC control software via LAN port
- Dual power design, redundant power

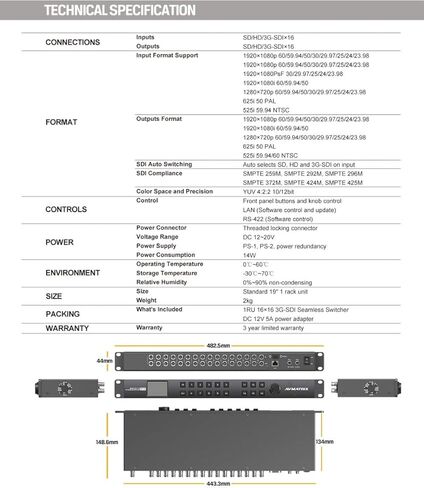

Specifications:

Connections:
- Inputs: SD/HD/3G-SDI x 16
- Outputs: SD/HD/3G-SDI x 16
- Input Format Support: 1920x1080p 60/59.94/50/30/29.97/25/24/23.98, 1920x1080p 60/59.94/50/30/29.97/25/24/23.98, 1920x1080PsF 30/29.97/25/24/23.98, 1920x1080i 60/59.94/50, 1280x720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50 PAL, 525i 59.94 NTSC

Format:
- SDI Auto Switching: Auto selects SD, HD and 3G-SDI on input
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
- Color Space and Precision: YUV 4:2:2 10/12bit

Controls:

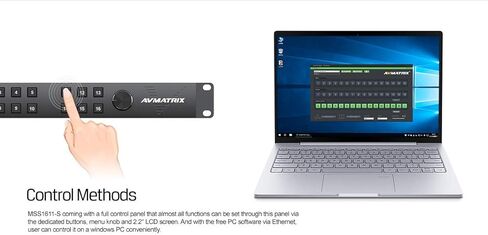

- Control: Front panel buttons and knob control; LAN (Software control and update); RS-422 (Software control)

Power:
- Power Connector: Threaded locking connector
- Voltage Range: DC 12-20V
- Power Supply: PS-1, PS-2, power redundancy
- Power Consumption: 14W

Size:
- Standard 19" 1 rack unit
- Weight: 4.4 pounds Compact Seamless SDI Matrix Switcher Features 3G/HD/SD SDI 16 inputs and 16 outputs
- Box dimensions (LxWxH): 21.7" x 10.8" x 3.4"
