AHD 720P Backup Camera Flush Mount, Metal Housing 170° Wide View Angle Rear/Side/Front View Camera for Car, HD Clear Night Vision IP69 Waterproof Reverse Camera, 18.5mm, 12V/24V, Black
【Significant Upgradation, 720P AHD Backup Camera】Thanks to everyone's love for L002, RAAYOO has upgraded and launched the brand new L002-U1 reverse camera. This camera features the latest 720p chip specifically designed for reversing, delivering excellent image output with impressive performance in both strong and low light conditions. Offering high-value products with great performance is RAAYOO's pursuit. It is also essential to you, isn't it
【Support CVBS and AHD 720P switching】This upgraded back up camera even supports HD CVBS and AHD 720P switching. Each optimization improves the definition, signal stability, waterproof performance, durability, installation, etc. Our vehicle backup camera can be switched to AHD signal output to achieve 720P display (Under the premise that the screen supports AHD 720P signal).
【170° Wide Angle Optical Glass HD Lens】The lens is the core component of the reverse camera for car. The HD lens used in L002-U1 wide angle backup camera is very different from ordinary lens in appearance, it has a larger aperture and a stronger sense of technology. High transmittance glass, fish eye appearance, all these features directly determine the wide angle, maximum output pixels and night vision performance of the camera
【Metal Housing, Remarkable Waterproof IP69】RAAYOO back up camera for car adopts a sturdy metal housing, support IP69 waterproof IP rate. It designed with fully sealed glue filling craft, so the waterproof effect is better than IP67 and IP68, you absolutely no need to worry about water, fog or mist inside

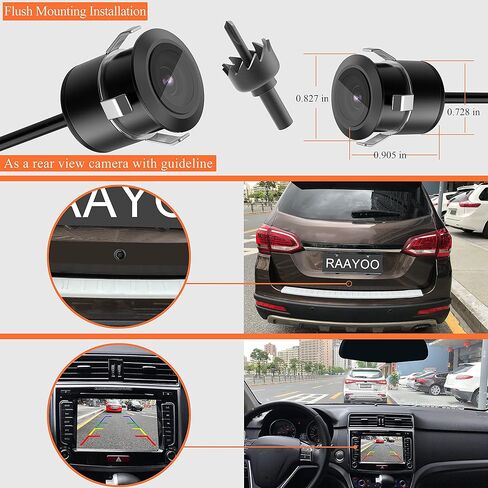

【Effortless Installation】RAAYOO reverse camera comes with 2 brackets supporting 2 installation options, bracket mounting or 18.5mm flush mounting. The cable of our car rear view camera has mini size 4 Pin connector, it is easier to pass through the vehicle body compared to the pervious bigger connector. Our power cord uses very thick copper core wire, it is easier to connect. Installation tools and accessories are included in the package
【Multifunctional wire loop】 This rear view camera has 3 built-in multifunctional switching loops, cut the orange loop: convert AHD 720P to CVBS image; cut the green loop: cancel the guide line; cut the white loop: convert rear view to front view. The default setting is AHD 720P rear view image with guide line. 【Compatible with 12V-24V voltage】 it's a universal camera for most vehicles, such as cars/trucks/trailers/RVs/vans/SUVs/campers and so on, effectively avoiding any blind spots when back up
【Important Notes】1.This camera is only compatible with car screen with RCA connector, not for dash camera, GPS and car recorder. 2.this backup camera only support NTSC, please go to Car settings>>Factory settings>>Reverse(Picture)settings>>select NTSC(CVBS N) if you connect to head unit. 3.If there is no image when connect it to a Factory Radio, please separately order a suited Harness&Programmer to complete installation, as different Radio need different Harness&Programmer to work together
【Installation Tools & Accessories Included】 1 x 26ft Double Shielded Video Wire;1 x 5ft Camera Power Wire; 1 x Camera Mount and Screws; 1 x Panel Removal Tool; 4 x Wire Clamps; 1 x Electrical Tape; 1 x 18.5mm Hole Saw; 5 x Zip ties; 1 x RAAYOO Camera; 1 x COLOR User Manual with Pics
