Overview

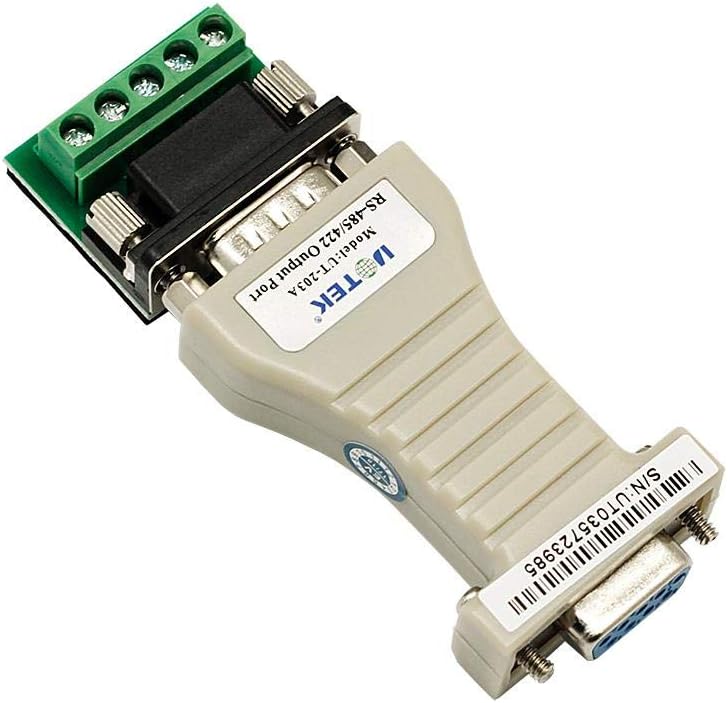

UT-203A can make RS232 communication distance extended to 1.2 KM without external power supply. Unique I/O circuit automatic control data flow direction without any handshake signals (such as RTS, DTR, etc.) and jumper setting can achieve full-duplex (RS422) and half-duplex (RS485) mode interconversion.
RS-232 side in DB9 female,
RS-485/422 side in DB9 male and binding post
Max connection: 32 RS485 devices; Max distance: 1.2 KM.
Baud rate: 300BPS-115.2KBPS;
Size:63mmX33mmX17mm
Environment:-25-70℃, Relate humidity 5-95%
Original Packing Included
1 x UT-203A RS232 to RS485/422 Converter
1 x Terminal block
1 x User manual
