SDTC Tech Microwave Oven Door Switch KW3A 16A 125V/250V Door Interloc (2 Normally Open and 1 Normally Close)

KWD 3
Pattern Name2 NO+1 NC
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

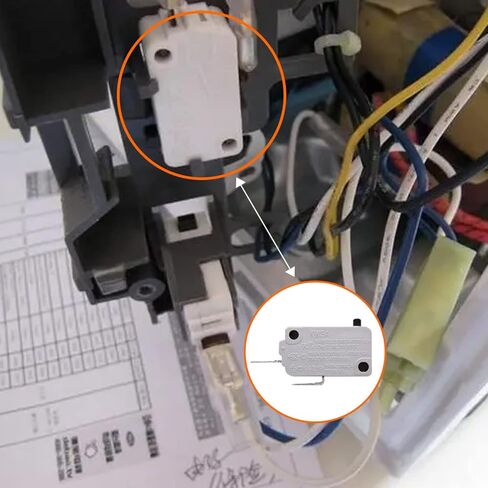

  • 【Function】It can solve the problems that the microwave oven cannot be opened or cannot be heated due to the damage of the door switch of the microwave oven. When replacing the microwave oven door switch, please pay attention to distinguish between normally open and normally closed switches, the switch with the foot in the NO position is a normally open switch, and the switch with the foot in the NC position is a normally closed switch.
  • 【Material】Engineering plastic; Color: Gray; Contact: Silver contact.
  • 【Parameters】Voltage: 125/250 AVC; Current: 16A.
  • 【Working Temperature】-40°~105°.

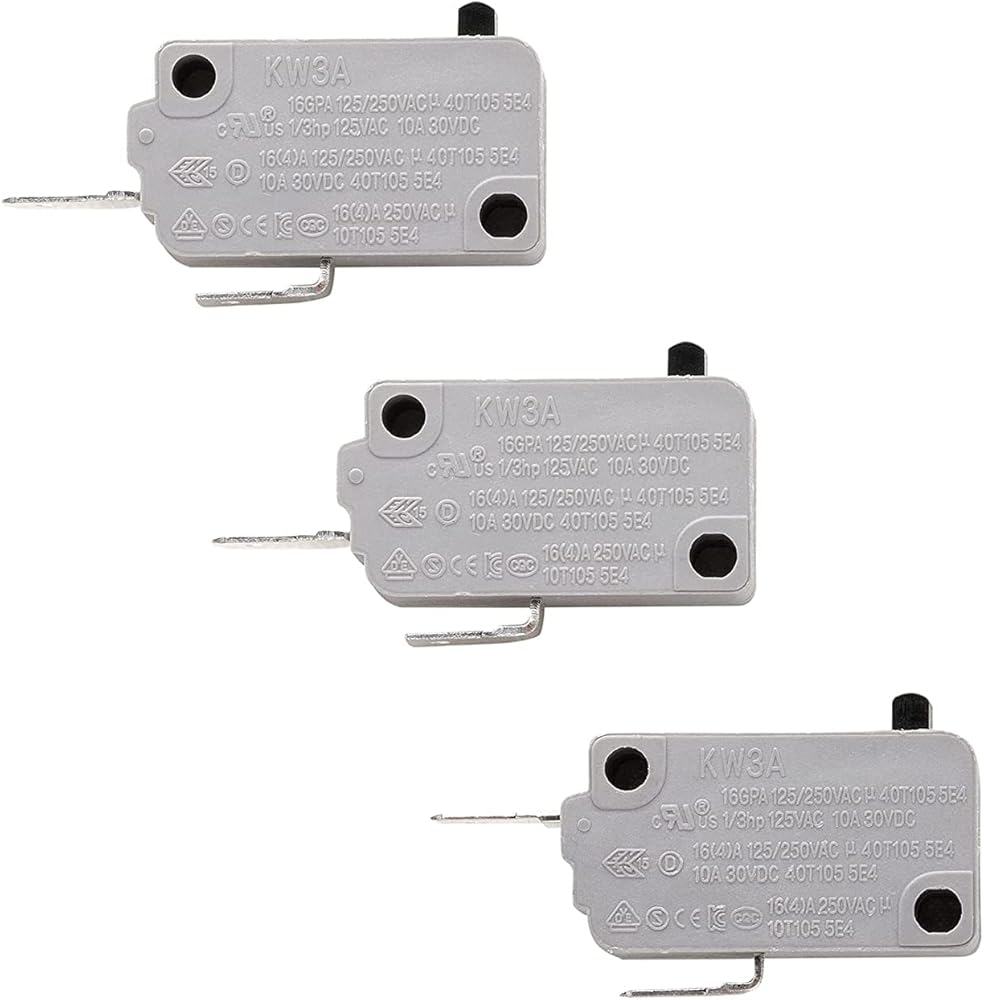

  • 【What You Get】KW3A Microwave oven door interloc switch. Includes 2 x KW3A normally open switches and 1 x KW3A normally close switch (2 NO+1 NC).

Description

KW3A Microwave Door Switch

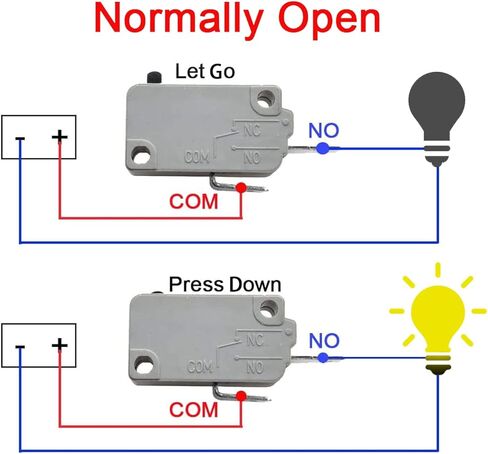

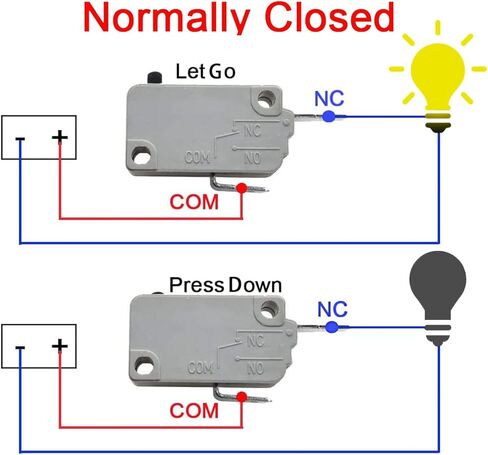

Please note the distinction between normally open and normally closed switches. The switch with the foot in NO position is a normally open switch, and the switch with the foot in NC position is a normally closed switch.

Specifications:
Model Number: KW3A-16
Material: High temperature resistant engineering plastic
Color: Gray
Working Temperature: -40°~105°
Current: 16A
Voltage: 125 / 250V
Insulation Resistance: Min 100MΩ
Mechanical Life: 50000 times

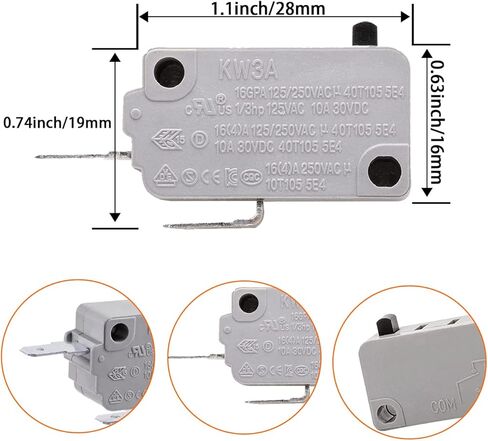

Case Size: 1.09" x 0.63" x 0.41" (27.8 x 15.9 x 10.3mm)

Package Details:
2 × Normally Open Switch
1 × Normally Close Switch
