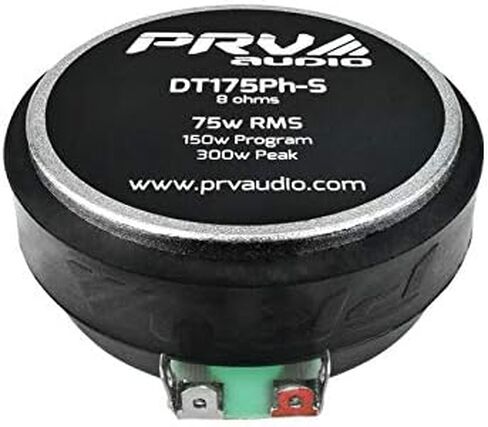

The DT175Ph-S is a lightweight compression driver that weighs just 1.5lbs and offers you an economical yet responsive driver through 20kHz. The Phenolic diaphragm offers a more subtle, smooth tone producing a less harsh sound in smaller environments yet packs the punch to fill most any size room.
The DT175Ph-S has a standard 1″ screw-on throat enabling you to quickly replace old worn-out or damaged drivers. The most affordable and compact 1″ compression driver from PRV Audio.
Type: Screw-On
Exit Throat Diameter: 1” (25.4mm)
Nominal impedance: 8 Ohms
Rated AES Power Handling (RMS): 75 Watts
Program Power: 150 Watts
Sensitivity 2.83V at 1m: 108 dB
Recommended Hi-Pass Crossover**: 3000 Hz***
**For Full Power Handling
***12db Per Octave Crossover
Frequency Response at -10dB: 1,300 – 19,000 Hz
Voice Coil Diameter: 1″ (25.4 mm)
Voice Coil Wire: CCAW
Voice Coil Former Material: Kapton
Diaphragm Material: Phenolic resin
Flux Density: 1.02 T
Magnet Material: Ferrite
EXTRA INFO
Overall Diameter: 3.31” (84 mm)
Overall Depth: 2.60” (66 mm)
Mounting Thread: 1 3/8” 18 TPI
Net Weight: 1.73 lbs (0.79 kg)
Shipping Weight: 1.85 lbs (0.84 kg)
Carton Dimensions W x L x H: 4.53” x 4.53” x 3.31” (115 x 115 x 84 mm)
