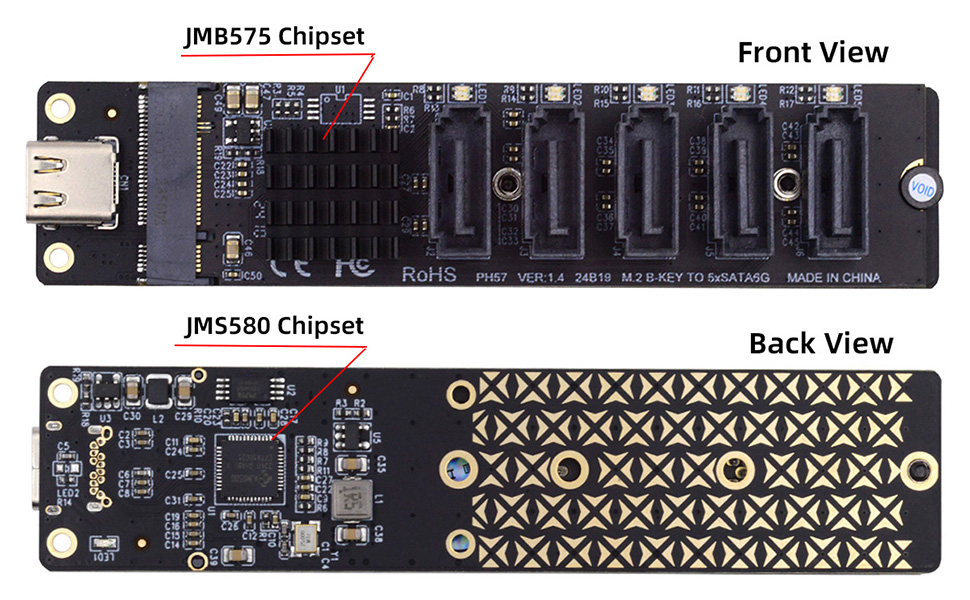

Dual chipset at the adapter, JMB575+JMS580. JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. Supports cascaded mode which enables maximum 5 drives connected to one host.

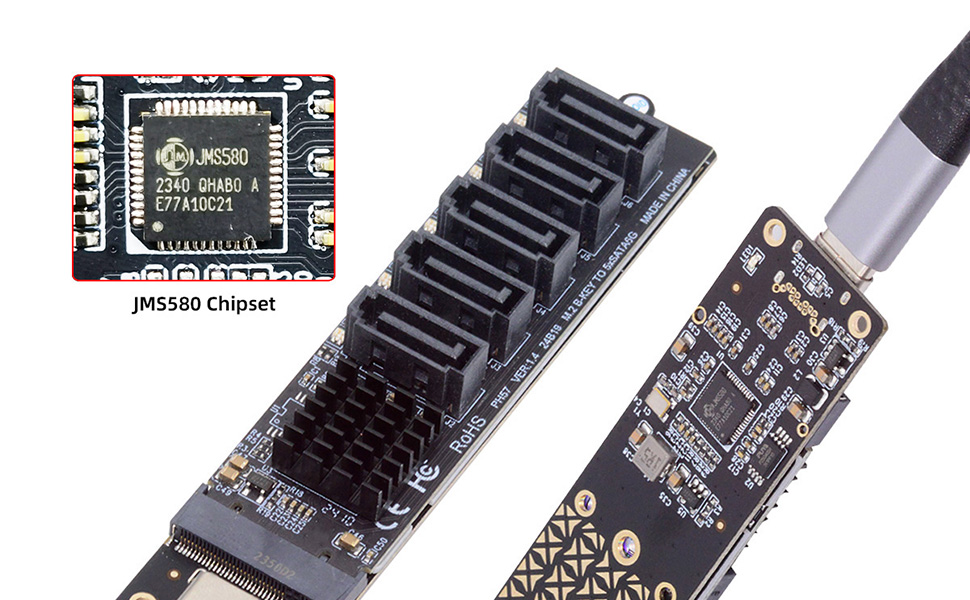

JMS580 is a USB 3.1 Gen 2 to SATA 6Gb/s bridge controller between USB host and SATA storage device. TheUSB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate. With proper setting, the chip can be configured as Type-C to 5 ports SATA 6Gbps Port.
Key Features: Complies with Serial ATA 6Gb/s Electrical Specification 3.2; Complies with USB 3.1 Specification Revision 1.0, USB BOT Specification;
Support 5 port SATA 6Gbps interface; Supports BIST and loopback mode; Support command-based and FIS-based switching; Support PM aware and non-PM aware host;
Main control chip: JMB575+JMS580; Interface: 5 x SATA3.0 interface
