Overview:

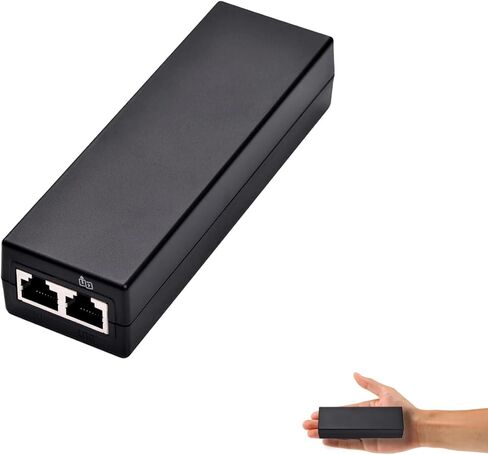

The PSE30WG-B is a 2.5Gbps Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. The PSE30WG-B supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones.

It complies with IEEE 802.3af/at PoE standard. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don't need to use AC power adapters anymore. For all the function featured in PSE90G, people can get the benefit of flexible network installation at lower cost, less downtime.

Model: PSE30WG-B
Technical Specifications Standards Compliance：
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-Tx Fast Ethernet
IEEE 802.3ab 1000Base-Tx Gigabit Ethernet
IEEE 802.3af/at Power over Ethernet
Connector: RJ-45 10/100/1000/2500 Mbps
Network: 1/2.5 Gbps rates

Pin Assignment and Polarity: ​1/2 (+), 3/6 (-);4/5 (+), 7/8 (-)
Output Power Voltage: 54V DC
Power: Mode-A+Mode-B 30 Watts Max.
Input Voltage: 100~240V AC
Load: 10-600mA

Indicators
AC Power (Green)
PoE (Orange)

Environmental Conditions
Operating Temperature: -20 ~40°C
Storage Temperature: -25 ~ 70°C
Storage Humidity: Maximum 95%, Non-condensing

Dimensions (L x W x H): 140*45.5*30.5mm (L*W*H)
Weight: 137g

Package Content:
30W POE Injector * 1
Power Cable * 1
