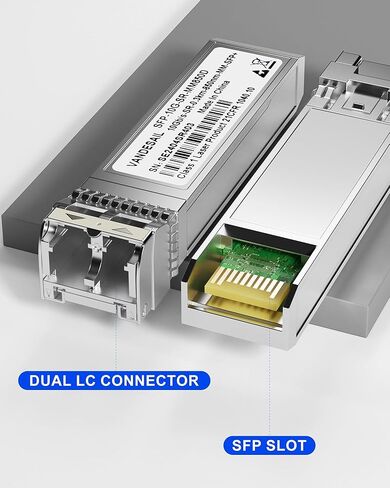

SFP+ Transceiver LC, 10GBase-SR SFP Module Multimode 850nm, up to 300M for Cisco, Netgear, Ubiquiti UniFi UF-MM-10G and so on -1 Pack

KWD 7
Brand
VANDESAIL
Weight
61 g
Capacity1 Pack
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

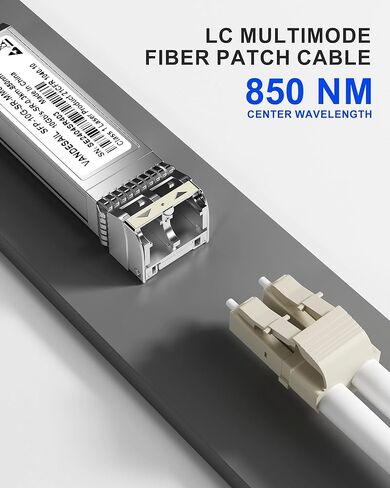

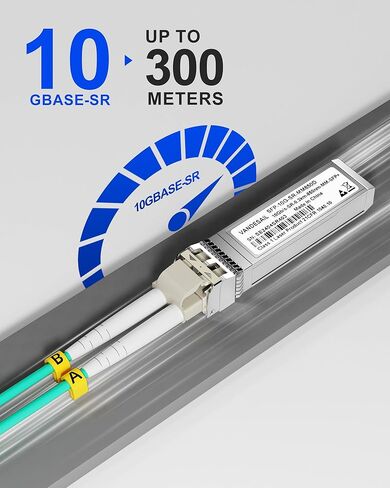

  • Product Information: VANDESAIL 10GBase-SR SFP+ LC Transceiver; Data Rate: 10G; Wavelength: 850 nm; Port Type: LC/UPC; Range: Up to 300 meters using 50/125um multimode fiber; Supports duplex multimode fiber types: OM1/OM2/OM3/OM4/OM5 fiber patch cables.
  • Plug and Play& Fully Compatible: Our SFP+ Transceiver is user-friendly with its plug-and-play functionality, fully hot-pluggable design, and advanced Electrostatic Discharge (ESD) protection. Always safeguard the SFP's optical ports with dust caps until ready to connect.This 10g sfp+ lc transceiver is universally compatible with MSA-compliant devices.
  • Durability & Low Power Consumption: Manufactured with premium alloy materials, the sfp+ transceiver Ic boasts a robust and wear-resistant housing for long-term durability. Its optimized low-power design (max 1.05 watts) and minimized Electromagnetic Interference (EMI) emissions contribute to energy efficiency and eco-friendliness. Compliant with SFP MSA standards and IEEE 802.3ae, it ensures broad compatibility and reliability across diverse systems.
  • Digital Diagnostic Monitoring (DDM): Equipped with an I2C interface, this sfp+ lc multimode transceiver provides real-time monitoring of operational parameters including temperature, supply voltage, transmit power, and receive signal strength. This proactive feature aids in preventing network failures and enhances maintenance efficiency.

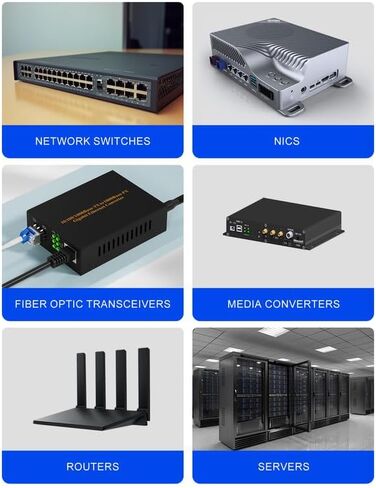

  • Wide Application: Tailored for multi-mode fiber environments, this sfp+ transceiver module seamlessly integrates network switches, servers, or NICs with SFP interfaces into gigabit fiber channel networks utilizing multi-mode LC connectivity, perfectly suited for applications in Network Attached Storage (NAS), Storage Area Networks (SAN), and High-Performance Computing (HPC) environments.

Description

10GBASE-SR SFP+ LC Multimode Transceiver, MMF (850 nm Wavelength, 0.3 km, LC), DDM. Specification Transceiver form factor：SFP+ Transmission speed：10GE Center wavelength (nm)：850 Product Model：10GBASE-SR Connector type：LC Reach: 300-meter Fiber Type: MMF DDM：Yes Applicable cable and maximum transmission distance： Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km Transmit power (dBm)： -7.3 to -1.0 Maximum receiver sensitivity (dBm)：-11.1 Overload power (dBm)：-1.0 Extinction ratio (dB)：3.0 Operating temperature：0°C to 70°C (32°F to 158°F) ,-40°C to +85°C (-40°F to +185°F) VANDESAIL SFP+ Transceiver 10Gb are dedicated to providing you with exceptional product quality and hassle-free customer service experiences, ensuring solid support for your network infrastructure upgrades and expansions. Choose now and embark on your journey of high-speed data transmission!
