trueCABLE LC to SC OS2 Fiber Patch Cable, 0.5m (1.64ft), UPC Polish, 200GB Singlemode (SM) Duplex 9/125um, Riser Rated (OFNR), UL Listed, 1pc, Yellow

KWD 3

ColorOS2 LC / SC Duplex SM Yellow
Size0.5m (1.64ft)
Style1 Pack
1 +

Special Features

  • [Extreme Performance] G652.D compliant bend insensitive glass 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type. UPC or "Ultra Physical Contact" polish on the fiber optic connector ends. Corning Ultra low loss glass-28 ultra optical fiber core and cladding. Local Area Network/Data Center & Internet Service Provider applications. Quality Tested with a Versiv CableAnalyzer.
  • [Bend Insensitive] Our LC/SC fiber cables are G652.D compliant bend insensitive aramid yarn encased tight buffer cable construction single-mode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns. 2.0mm OD (overall diameter) cable jacket supports high density applications.

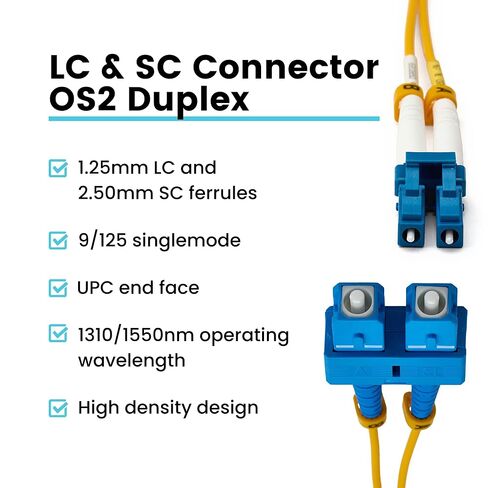

  • [High Quality Ceramic Ferrules] Our LC/SC fiber patch cables are made with 1.25mm and 2.50mm superior grade LC and SC zirconia ceramic ferrules ensure precision alignment and very low optical loss.
  • [For Use Indoors] OFNR (Riser) rated fiber optic cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces.
  • [Forever Warranty] Our fiber optic cables have been performance tested with a Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our singlemode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. All of our fiber optic patch cables are backed by our FOREVER WARRANTY.

Description

When copper just won't cut it, our 9/125µ glass OS2 LC to SC duplex fiber patch cables are the ideal choice for data centers, telecom rooms, server farms, SAN applications, switch to switch backbone connections, or any installation where a durable bend insensitive connection is required. Single mode fiber optic cable has extremely low loss and is used in applications requiring edge emitting laser or VCSEL transceivers where very long distances or extremely high speeds over shorter distances are necessary. fiber optical patch cables provide extreme performance with the ability to carry data to 10KM at 1310nm or 40KM at 1550nm, depending upon the light source capability. With speeds of 1G/10G/25G/40G/100G/200G/400G, depending upon the equipment used and the required distance of your application. Our fiber optical patch cables are bend insensitive for tight enclosures and sharp turns and our 2.0mm cable jackets support high density applications. Our high quality ceramic ferrules ensure precision alignment and very low optical loss. OFNR riser rated cable jackets are suitable for indoor use and will not promote the spread of flames. fiber optical patch cables have been performance tested with a CertiFiber Pro and are in compliance with ANSI/TIA standards as well as UL listed. All products purchased from include our Forever Warranty. Do you have technical fiber optics questions? Contact us for expert fiber cable advice. We're here to assist you and look forward to earning your business. Our experts can answer any questions involving any of the following: fiber optic cable, fiber patch cable, lc fiber patch cable, fiber optic connector, fiber cable, fiber optic patch cable, lc fiber cable, sc to lc fiber patch cable, sc to sc fiber patch cable, lc to sc fiber patch cable, fiber optic cables, sc fiber cable, fiber optic wire, lc fiber cleaner pen, fiber optic extension cable, and lc to lc single mode fiber patch cable.
