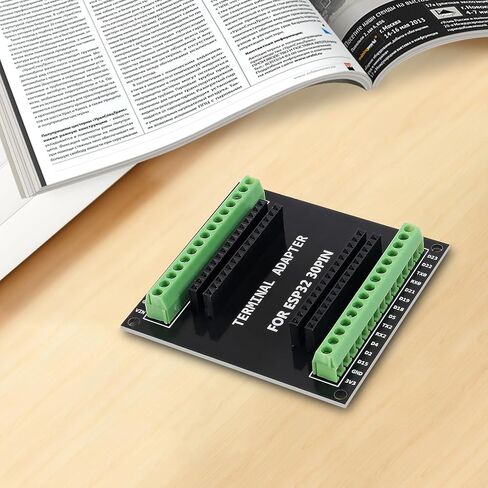

4pcs ESP32 Breakout Board GPIO 1 into 2 Compatible with 30 Pins ESP32S ESP32 Development Board 2.4 GHz Dual Core WLAN WiFi + Bluetooth 2-in-1 Microcontroller ESP32 Chip

KWD 6
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【ESP32 Breakout Board】This breakout board only compatible with 30 pins esp32 development board. Not applicable to other versions.
  • 【GPIO 1 INTO 2】The ESP32 Breakout Board can expand one GPIO pin of esp32 development board to two. Convenient for users to reuse all pins in smart home electronic modules & components, DIY projects.
  • 【Double-Layer PCB】This esp32 expansion board is design with double-layer that one pin is wired on both sides. Great contact and stable signal transmission for your esp32 board.
  • 【Ease to Use】Needn't welding components.These boards fit your 30 pin ESP32 perfectly.The ESP32 can be inserted into the sockets with minor effort by hand.
  • 【2-type Connections】The terminal breakout board can be connected through by pin header & screw terminal.You can choose the suitable connecting way for your project.Before purchasing, please confirm that the pin width of your ESP32 board is consistent with that of the breakout board.

Description

ESP32 GPIO Board ESP32S Pin Out IO Out 1 into 2 for 30 Pin ESP32 ESP32S Development Board

Specification:
Material: High quality FR-4 material
Connect way:Two-Type Connections
Pads: Tin plated
PCB layers: Two layers
Size: 6.3 * 6.6 * 1cm (L*W*H)

Features:
1. Compatibility:
The breakout board is only fit for 30Pin ESP32 Development Board. Before purchasing,please confirm your esp32 board pins width is coincide with the pin width of the breakout board.

2. GPIO 1 into 2:
The ESP32 breakout board can expand one GPIO pin of ESP32 development board to two.Convenient to reuse all pins in smart home DIY projects. Great breadboard alternative.

3. Two Types Connections:
The terminal block board can be connected through by Pin Header & Screw Terminal.You can choose the suitable connecting way for your project.

4. Double-Layer PCB:
The expansion board is design with double-layer that One pin is wired on both sides. Stable and highly reliable.Great contact and stable signal transmission for your esp32 board.

Package included: 4* ESP32 Breakout Board GPIO 1 into 2 for ESP-32S 30PIN Terminal Screw Board
