Tri-Color 1.54 Inch E-Ink Display Module Three-Color Resolution 200x200 3.3v E-Paper Electronic Screen Panel with Embedded Controller SPI Interface Support for Raspberry Pi/STM32/Nucleo/Jetson Nano

KWD 8
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display
  • No backlight, keeps displaying last content for a long time even when power down
  • SPI interface, for connecting with controller boards like for Raspberry Pi/Nucleo, etc.
  • Ultra low power consumption, basically power is only required for refreshing;Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Resources: www.waveshare.com/wiki/1.54inch_e-Paper_Module_(B)

Description

Description

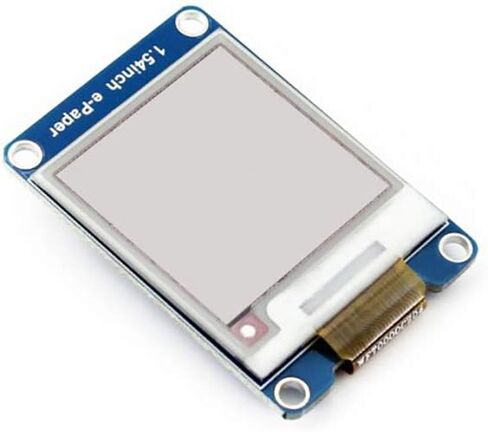

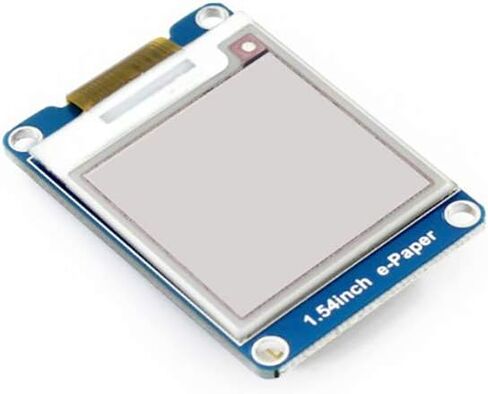

200x200, 1.54inch E-Ink display module, three-color, SPI interface
This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports red,
black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications
such as shelf label, industrial instrument, and so on.

Specifications

Operating voltage: 3.3V/5V
Interface: 3-wire SPI, 4-wire SPI

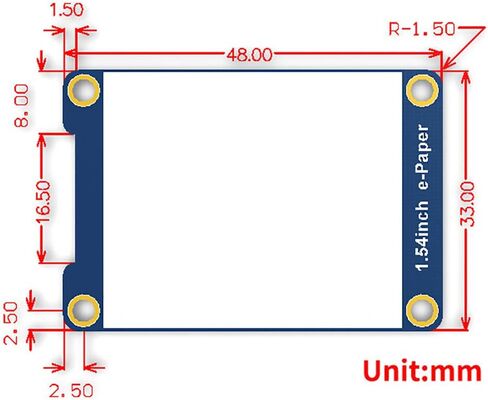

Outline dimension: 48mm x 33mm
Display size: 27.6mm x 27.6mm
Dot pitch: 0.138 x 0.138
Resolution: 200 x 200
Display color: red,black, white
Grey level: 2
Full refresh time: 8s （Do not support partial refresh)
Refresh power: 26.4mW(typ.)
Standby power: Viewing angle: >170°

Package Contains

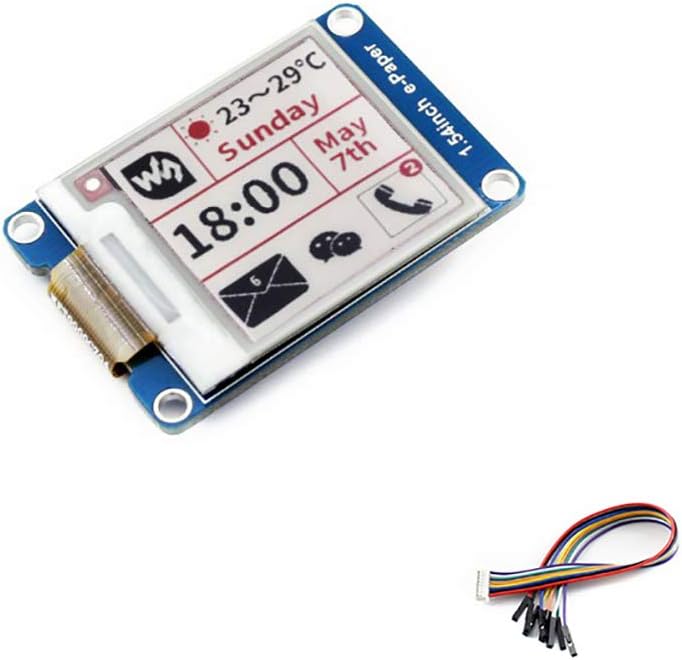

1. 1.54inch e-Paper Module (B) x1
2. XH2.54 20cm 8Pin x1
