Features:
Main control chip: TPS61088A
Identification chip: FP6601Q
Input voltage: 2.8 ~ 4.5V, very suitable for 3.7V polymer lithium battery
Output voltage: The default is 5V, triggering fast charge after 4.5V ~ 12V according to the protocol.
Input rated current: 8A
Output current: 5V3A, 9V2A, 12V2A.Output current is adaptive.
Output power: up to 24W.
Support Agreement: QC2.0, QC3.0, Huawei FCP, DCP Agreement
Efficiency is up to 93%, with a typical value of 90%.
Module size: 47.5 (length) * 16.5 (width) * 8 (height) mm (including USB)
Description:
The FP6601Q chip integrates the fast charge protocol and Qualcomm QC2.0/3.0USB interface fast charge protocol, which can quickly charge devices that support FCP and QC2.0/3.0 protocols.In addition to supporting the USB BC1.2 standard, it also supports FOR Apple and FOR Samsung devices.The chip can automatically detect whether the currently connected device is a QC2.0/3.0 or FCP device to automatically adjust the voltage.
Packaged included:

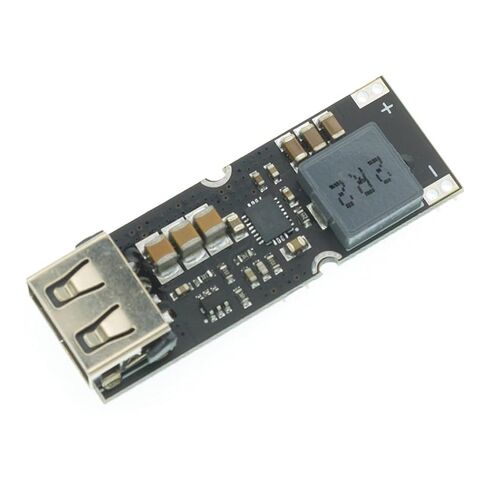

2 x TPS61088 Step Up Boost Power Module
