Pi Expansion Board Pi HiFi DAC+ HD Audio PCM5122 24 bit Expansion Board for Pi 3 Model B / 2B /B+/A+/ Pi Zero W

KWD 12
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • With DAC All function PCM5122 chip and I2S Input, X920 DAC+ board is a HiFi / DAC+ / HIFI / Full HD audio expansion board for Raspberry Pi 3 Model B/ 2B / B+;
  • After using X920 board, User can coordinate with the broadcast system (such as Volumio, RuneAudio, OSMC, XMBC(Kodi), MOODE etc.) to set up your own HIFI player network.

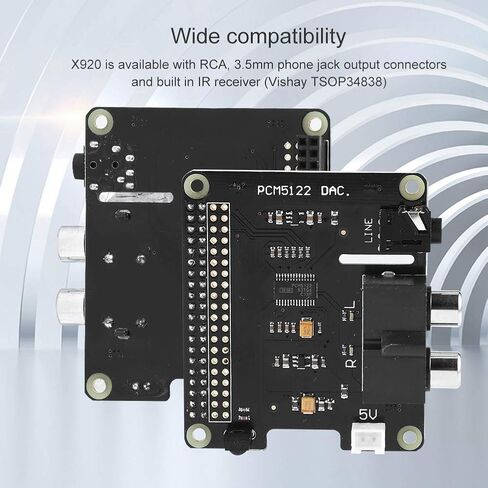

  • X920 is available with , 3.5mm phone jack output connectors and built in IR receiver (Vishay TSOP34838);
  • Full HD audio up to 24 bit/192kHz playback and Class leading audio (112db SNR, and 93db THD) function, Integrated hardware volume control with TI's LP5907 Ultralow Noise voltage regulator for optimal audio performance.
  • Powered by , no external power requirements, Conforms to the hardware attached on top (HAT) specification.

Description

Specification: I2S Input (LRCK GPIO19, BCK GPIO18, DATA GPIO21, GND)
Output Ports: 1 x 3.5mm phone jack, 2 x connectors
Analog audio output level: 2.0VRMS
Resolution/Sampling Rate: upto 24bit / 192KHz ( I2S)
IR receiver: GPIO17, 38KHz
Operating System:
Moode Audio Player, OSMC, Openelec, Raspbian Jessie,Volumio,Pi Core Player, RuneAudio
Support:Volumio, RuneAudio, OSMC, XMBC(Kodi), MOODE etc.
Full HD audio:up to 24 bit/192kHz playback
Built in audiophile TI Burr Brown DAC (TI PCM5122)
Class leading audio:112db SNR, and 93db THD
Integrated hardware volume control
TI's LP5907 Ultralow Noise voltage regulator for optimal audio performance
Built in IR receiver :Vishay TSOP34838)
Available with and 3.5mm phone jack output connectors
Powered by , no external power requirements
Conforms to the hardware attached on top (HAT) specification
Access to GPIO pins on HAT

Packing List:
1 x Expansion Board
