Specifications:
Size: 55*24*22mm/2.17*0.94*0.87inch
Input voltage: 6V-12V
Input Current: 0.5A-2A(depending on the input voltage)
Input line length: about 10cm/3.94inch
High Voltage type: DC type
Output voltage: about 80KV (please pay attention to safety when used)
Output current: 0.5A
Output line length: about 10cm/3.94inch
High voltage poles ignition distance: 1.5cm(1.5cm is maximum distance, 1cm is better)

Note:
1.Input the power of 6-12v, output two levels of terminal can produce 1.5cm length purple high temperature arc, instant ignition paper, single high voltage line can also discharge of any metal body, working without a crack sound.
2.On the input power: 3.7-v lithium battery can be used in series, such as 18650 battery, idle cell phone battery (to remove the protection board, recommended capacity above 2000mAh) or Nickel-cadmium/Nimh battery pack, 4V or 12V lead Acid batteries(12V battery works best) )

Package Included:

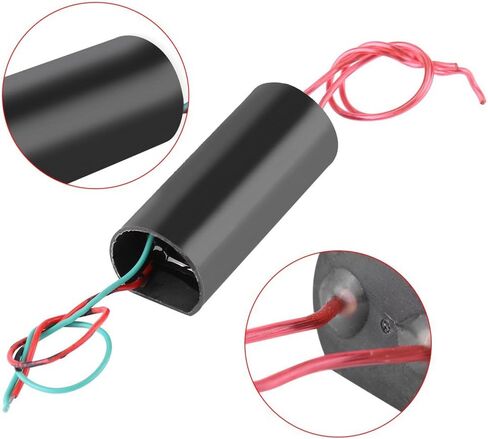

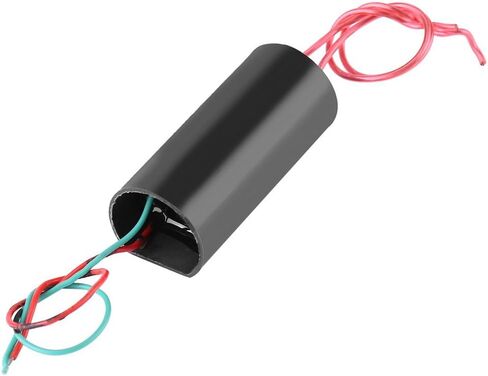

1 x High Voltage Pulse Generator)

Note:
1.The power time is not above 20 seconds each time. Since the output power is strong, it must be driven by rechargeable battery or storage battery. Improper voltage and long work will easily damage the high voltage module. Be careful when testing and using!
2. Ignite distance keep within 1cm, please.)
