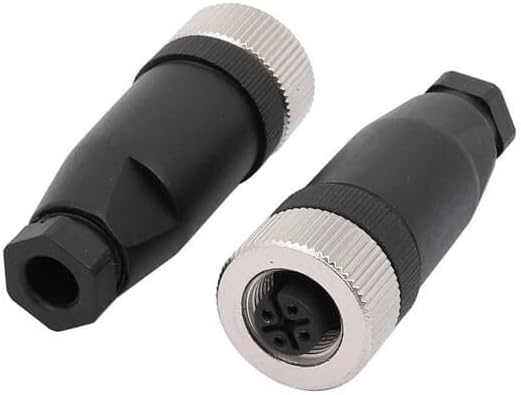

M12 Field Wireable Connector 4 Pin Straight Cable Mount Aviation Plug Waterproof IP67 Industrial Circular Sensor Connector (Female, A Code)

KWD 2.500
Brand
BZYETLP
Weight
18 g
ColorA Code
LengthFemale
– 1 +

Special Features

  • The M12 male/female wireable connectors are industry standard A/D coded supporting DeviceNet, I/O link and Profibus. A selection of sensor style plugs designed for cable mounting.
  • Straight Male Field wireable connector, M12 threaded Connection, 4 Pin D Codeing, Solder Wire Termination, Plastic Housing PBT, Black, accepts 4-8mm cable diameter. Easy to assemble the circular connectors feature a PG7 or PG9 cable gland with integral strain relief and clamping for optimal cable retention.
  • Baked with professional premium black rubber to make it insulating and flame retardant. Thread locking mechanism, anti-vibration locking design, 12mm threaded joint. Waterproof industrial connectors use full copper-plated metal screw sleeves and pure copper gold-plated contacts, which are strong, corrosion-resistant, and durable, while ensuring stable and reliable data and signals.
  • Easy and quick connection and disconnection; installation and removal without tools, M12 cable plug provides quick and easy connection between field devices and terminal connections, flexible and convenient to plug and play. Suitable for DIY single-ended aviation connection lines, allowing you Free combination and matching, complete the work efficiently and quickly. Easy to install and replace, even by non-technical personnel.
  • M12 industrial circular connector is suitable for on-site installation of data communication and I/O connection. It is widely used in signal electronic connectors of aviation, computers, various instruments and industrial cameras, electric bicycles, sensors and industrial automation. It can be easily connected to proximity switches, photoelectric barriers, flow monitoring devices, sensor and actuator devices as well as fieldbus components.

Description

Specification：
IP67 ingress protection rating
Gender: Male/Female
Number of Positions: 4 pin
Crewing Wire gauge (mm): 0.75 mm²
Terminal type: field wireable screw termination
Installation characteristics: None
Direction: Straight or 90° cable entry
Mechanical operation> 100 mating cycles
Coding: A/D code for DeviceNet, IO link and Profibus
Upper temperature: 85 °C Lower temperature: -40 °C
Installation method: Cable
PG7 gland = 4-6 mm cable acceptance
PG9 gland = 6-8 mm cable acceptance
Rated voltage: 250 V
Rated impulse voltage: 2500 V
Pollution degree:3
Overvoltage category:II
Material group:III
Rated current: (40°C)4 A
Volume resistivity: ≤ 3 mΩ (Gold)
