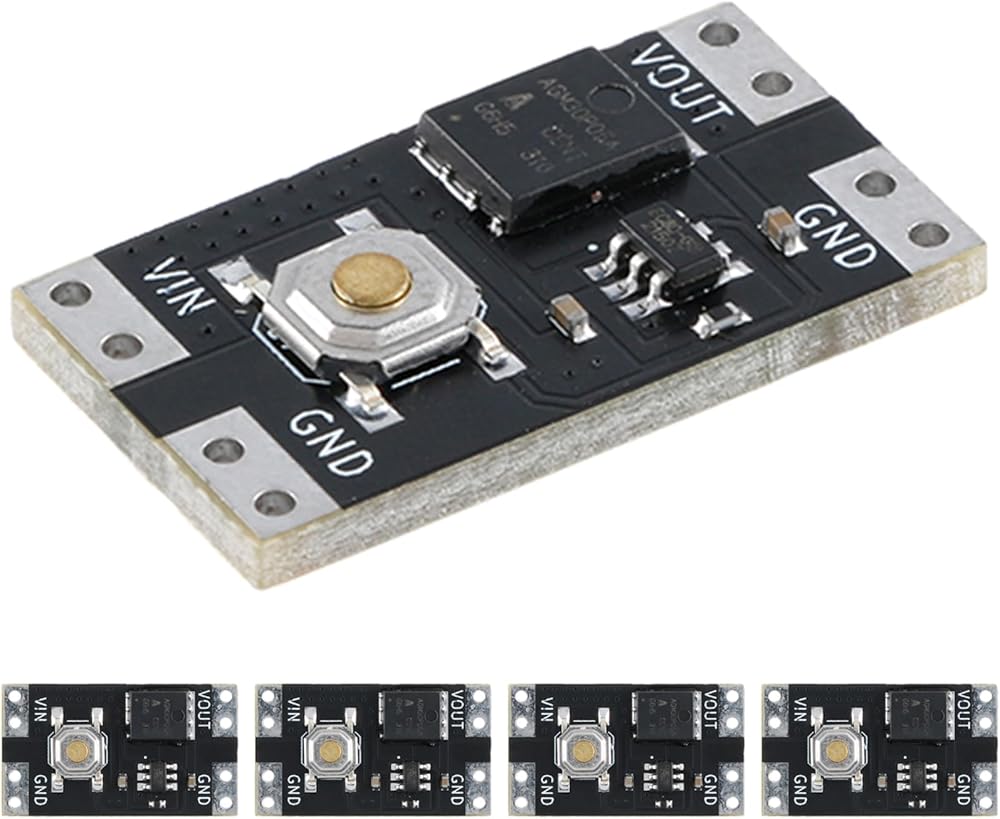

5Pcs XL-10AL Single Push Button Switch Module Single Button Bistable 10A Current Load Low Power Consumption 300nA One Button Switch for Arduino DIY KIT Universal

KWD 4
Brand
EC Buying
Weight
10 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Easily control your electronic devices with the XL-10AL single push button switch module, featuring a low power consumption of 300nA at 3.5-5.4V, making it suitable for computer board and electronic control applications
  • Experience the convenience of a push start button with the XL-10AL module, which supports a 10A load at 5V and only has a voltage drop of 130mv, ensuring reliable and efficient performance for your low voltage switch needs
  • Upgrade your switch module board with the XL-10AL, a single-button, dual-state module that combines the functionality of a push button switch with the reliability of a self-locking switch, providing a compact and versatile solution for your electrical switch needs
  • Enjoy the flexibility of the XL-10AL push button board, allowing you to easily connect various styles of push button switches to the control board, making it suitable for a wide range of push button switch module applications
  • Maximize the performance of your push button switch module with the XL-10AL, designed to meet the working voltage and current requirements of most DC loads, making it a choice for your push button switch needs

Description

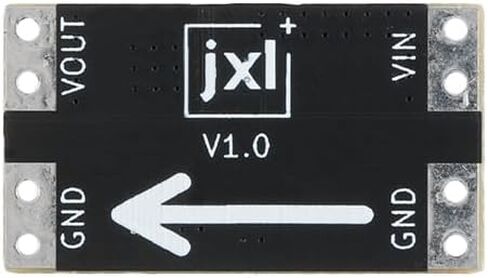

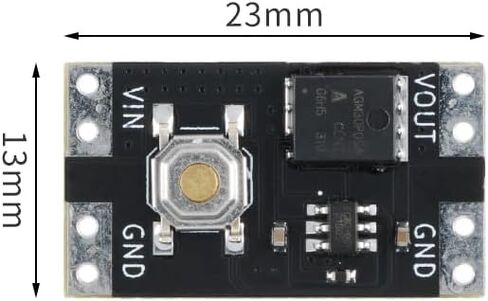

XL-10AH and XL-10AL are respectively the wide voltage version and low power consumption version. This series of modules can achieve the same function as self-locking switches by lightly touching the switch to turn on and off the power. MAX can support the load of switching 10A current, and its power consumption is extremely low in the off state, The XL-10AL power consumption version can support operation at voltages of 3.5-5.5V, with a static power consumption of about 300na in the off state, while the XL-10AH wide voltage version can support a wide range of voltages of 4.5-26V, with a static power consumption of about 1.3ua in the off state. The excellent performance of the module covers the working voltage and current required for most DC loads, and the small volume design will not take up too much space on your device. For the button part, if you want to use other styles of buttons, you can also connect various styles of touch buttons to our switch control board through wires.

Model: XL-10AL/XL-10AH
Working voltage:
XL-10AL: 3. 5-5.4V
XL-10AH: 4. 5-26V
Static power consumption: (sampling test has deviation but is not significant)
XL-10AL: 300na (5V voltage measurement)
XL-10AH: 1.3ua (12V voltage measurement)
Load current:
XL-10AL: 10A (5V voltage test for 30 minutes)
XL-10AH: 10A (12V voltage test for 30 minutes)
Pressure drop:
XL-10AL: 130mv (5V 10A measurement)
XL-10AH: 120mv (12V 10A voltage measurement)

Regarding the load current, XL-10AL can run for a long time at 5V and may be very hot. However, after a 30 minute long run test at room temperature of around 25 ° C, it is not recommended to run for 10A with a voltage below 4V. High current is not recommended to run for 10A with a voltage below 4V, as heating under low voltage can easily burn the module. XL-10AH 10A current is not recommended to run for a long time with a voltage below 7V.
