8MP 5 in 1 AHD CVI TVI CVBS IP Camera Tester Monitor, IPC-5200 8MP HD Display Video Monitor IPS Touch Screen IPC Tester Support POE PTZ WiFi RS485 HDMI & VGA Input DC12V Output

IP Camera Tester: The network camera tester supports the maximum 8MP 4K H.265/H.264 IP POE camera test. Powerful network tools can help you detect and set various network parameters. Support POE IEEE802.3AF/48V, maximum power 25.5W, UTP cable test, POE test RJ45 TDR cable test.
5 -in -1 Coaxial CCTV Camera Tester: Support maximum 8MP (3840x2160P) TVI / AHD / CVI / camera test, supports UTC PTZ control and call OSD menu. The built -in "Auto HD" APP can automatically identify the camera type when watching HD AHD / TVI / CVI Camera. The CCTV tester also supports the CVBS simulation camera test.

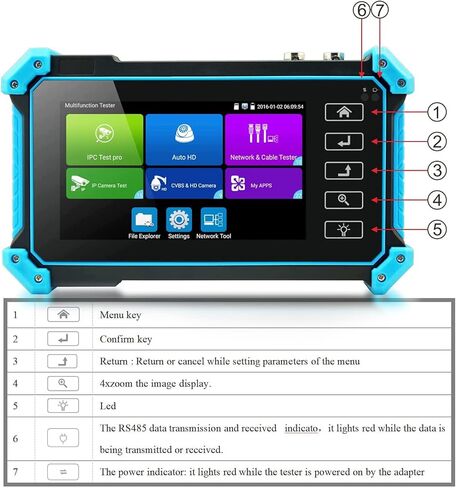

Multifunctional Tester: The CCTV tester has a 5 -inch (about 12.7 cm) 3840 x 2160P touch screen, which can display the real resolution of the IP camera image. Built -in media player. Built -in WIFI to create WIFI hotspots. VGA and HDMI input, LED lights, calculators, supporting snapshots, video recording and playback; camera tester using Android systems, so you can also install the required applications.
PTZ Controller: Video monitor tester built-in PELCO-D / P PTZ control protocol, etc. Through their own RS485 interface, users can control the upper and lower, left, and right rotation of the clouds, and adjust a machine zoom, focus, aperture size.
Support 5 cameras mode tests，No SDI: The unit does not work with SDI, Support 8MP maximum TVI / AHD / CVI / IP camera test, The CCTV tester also supports the CVBS simulation camera test.
