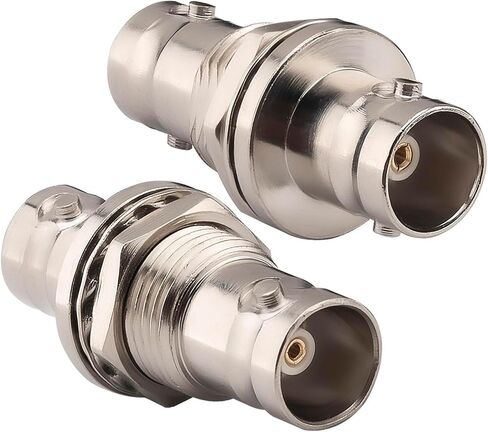

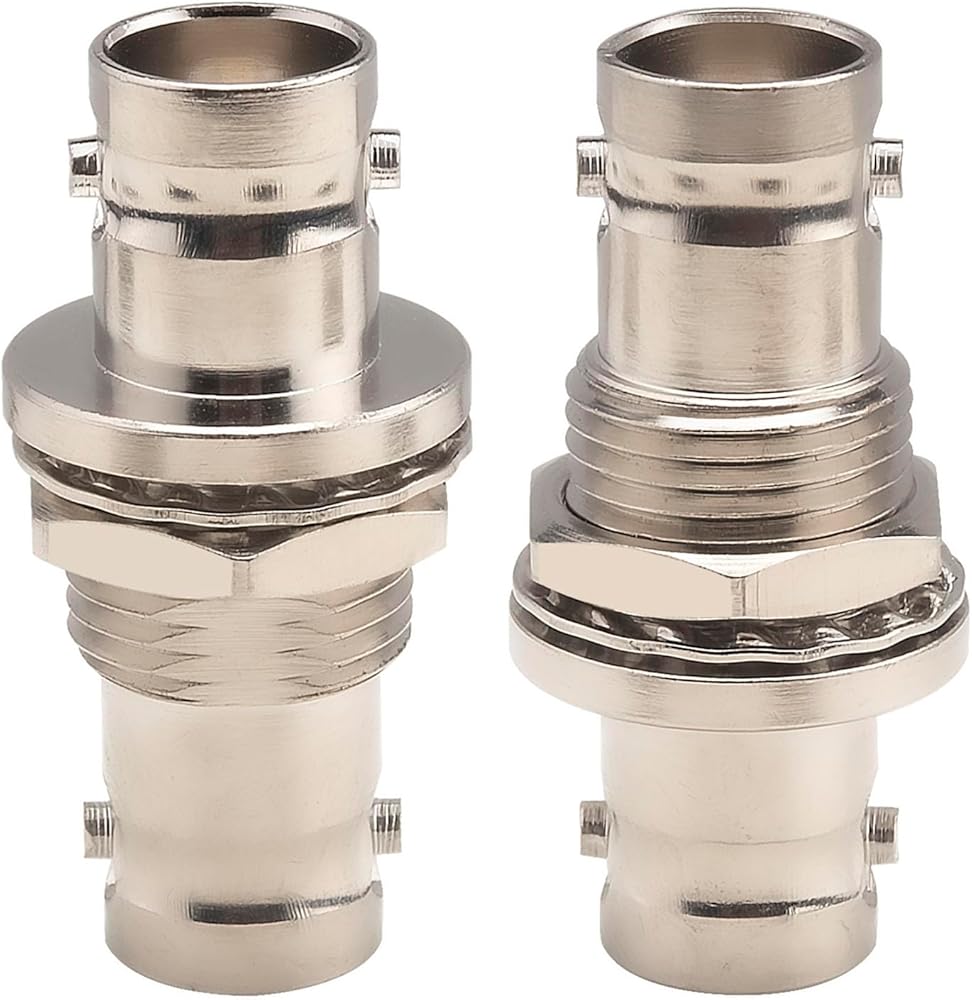

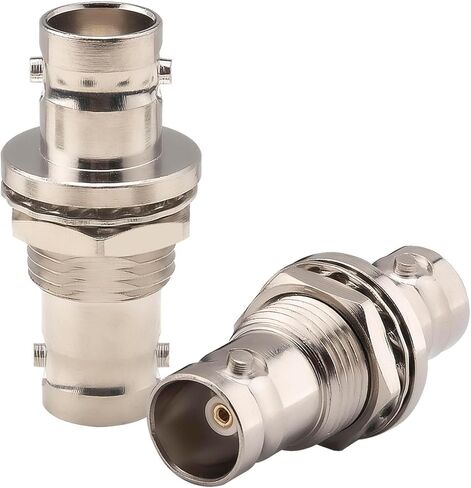

BNC Female to Female Adapter 75 ohm Bulkhead Connector Coax Extension BNC Coupler for CCTV Security Camera System Wireless Receiver CB Amateur Radio Antenna Front Patch Panel Rack Mount Pack of 2

KWD 3
Model75 Ohm
– 1 +

Special Features

  • BNC Coupler Brass body material(Not Alloy) for durability ,Insulators: PTFE Impedance: 75 ohm
  • These BNC sdi couplers are used in conjunction with an assortment of CCTV camera installations, security alarm systems, sdi monitors, DVR Recorder, Image Audio Transmitter Receiver, and surveillance audio cables.
  • BNC coupler has threading and a mounting nut for securing into a bulkhead, wall plate, or any other panel where a BNC port is desired
  • Compatible with: CB Radio Ham Radio Amateur Radio Antenna BNC Patch Panel Rack Mount Front Mount;
  • Package Content : 2 x BNC Female to BNC Female 75 Ohm BNC Barrel Adapter

Description

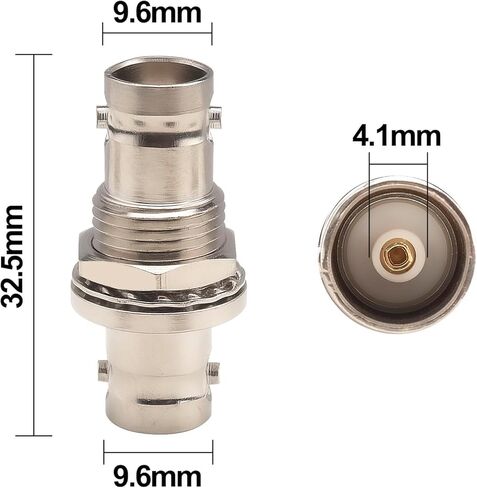

Basic Attributes

Product Model: 75-Ohm BNC-KKBH
Applicable Gender: Female to Female
Thread
Type: With nut and washer
Material: Full copper
Mechanical Performance

Frequency Range: 0 - 1 GHz
Impedance: 75 Ohms
Mating Cycles: 500 cycles
Withstanding Voltage: 750V RMS
Withstanding Current: 1 Ampere (A)
Connecting Force: ≥ 0.68 Newtons (N)
Tightening Torque: 0.8 - 1.1 Newton-meters (Nm)
Electrical Performance

Attenuation: ≤ 0.2 dB at 1 GHz
Insertion Loss: ≤ 0.15 dB at 1 GHz
Return Loss (Reflection Loss): ≥ 26 dB at 1 GHz
Insulation Resistance: ≥ 5000 Megaohms (MΩ)
Differential Mode Suppression Ratio: ≥ 40 dB at 1 GHz
Bandwidth: ≥ 1 GHz
