Product Description:

Material: Stainless steel

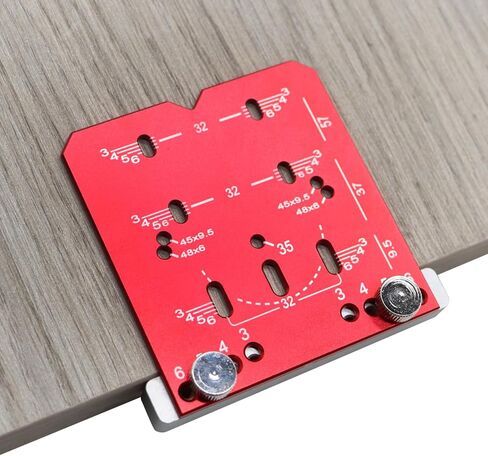

Normal version:
Calibration accuracy: ±0.1mm
Package size: Length × width × height = 4.92*3.94* 1.18IN
Packing weight: about 0.22LB
Package contains: 1* positioning plate +2* clamping screws +1* clamping plate

Upgraded version:
Calibration Accuracy: ±0.1mm
Package size: Length × width × height =10.24 × 5.12 × 2.36 IN
Packing weight: Approx. 1.17LB
Package includes: 1* Upgraded positioning plate +2* clamping screws +2* drill bit +1* fixing pin +1* wrench +1* stop collar.

How to use:
1.Preparation stage: First, ensure that the surface of the tool is clean and non-destructive, and check whether there is bending or deformation.
2.Measurement and positioning: Stick the positioning ruler to the edge of the cabinet door, adjust the slider on the positioning ruler to the correct position according to the hinge installation requirements.
3.Mark holes: Use a pencil or marker to trace the location of the hinge mounting holes along the mark line on the locator ruler.
4.Drilling installation: Use an electric drill to drill holes in accordance with the marked holes, and install hinges.
