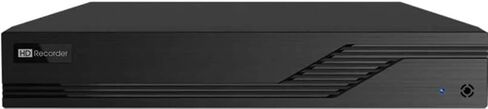

Titanium ED8004H5-BN 4-Channel Hybrid 4-in-1 High Definition Digital Video Recorder, Internet Protocol Security Camera (IPC), 5MP Lite@10FPS, 4MP Lite@15FPS, 4 CH Video Input, 1 CH Audio Input, 1 SATA

Key Features
- 4 CH TVI /AHD/CVI 5MP/4MP/1080P/720P/WD1 video input
- 4 CH DVR supports 2 CH 5MP/4MP/3MP/1080P/960P/720P IP video input
- Adopt standard H.265 high profile compression format to get high-quality video at the much lower bit rate
- Intuitive and user-friendly Graphics User Interface (GUI), window style operation by mouse
- Multi-mode recording: manual/timed/motion/AI recording
- Playback: 4 CH simultaneously playback
- Search: time slice, time, event, tag search
- Express and flexible backup via USB, network, and so on
- Pentaplex: preview, record, playback, backup, and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web or CMS: preview, playback, backup, PTZ, and configuration
- Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with mobile device
- Authorization management, log review and device status review
- Support 1080P output, true high-resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smartphones with iOS and Andriod OS

Specifications
- OS: Embedded Linux
- Multi-screen Display: 1/4/6/9
- Resolution: 5MP Lite/4MP Lite/1080P/1080P Lite/720P/WD1
- Interface: RJ 45 100Mbps x1
- Incoming Bandwidth: 16Mbps
- Outgoing Bandwidth: 40Mbps
- HDD: SATA x1, up to 10TB
- RS 485: RS 485 x1 (half-duplex)
- USB: USB 2.0 x2 (in the rear panel)
- Power Supply: DC12V / 1.5A
- Consumption: ≤5W( without HDD)
- Dimensions: 255x222x42mm
- Weight: 2.73 lbs
