Specifications:
Material: High Quality Aluminum
Max. Output Power: less than 5mW
Class: IIIa
Color: Green/ Red
Wavelength: 630-680nm
Boresighter's Weight: 1.34oz
Boresighter's Length: 6.1" / 155 mm
Length of rod that fits into the barrel: 2.4"- 3.5" / 60 mm - 90 mm (tapered)
Head Diameter: 16 mm
Tail Diameter: 5 mm
Dimensions: 170mm x 20mm
Range: 330ft/100m
Power:1x CR2 battery
HOW TO USE IT?
A. Assemble the battery into the boresighter.
B. Select the proper adapter that fits in the barrel of your firearm.
C. Assemble the adapter on the small end of the laser boresighter, then screw the adapter tight to maker sure the adapter will be stable on your barrel.
D. Push the small end of the boresighter with the adapter into the barrel of your firearm. Make sure the boresighter is inserted in untill it is sung with the crown of your firearm.

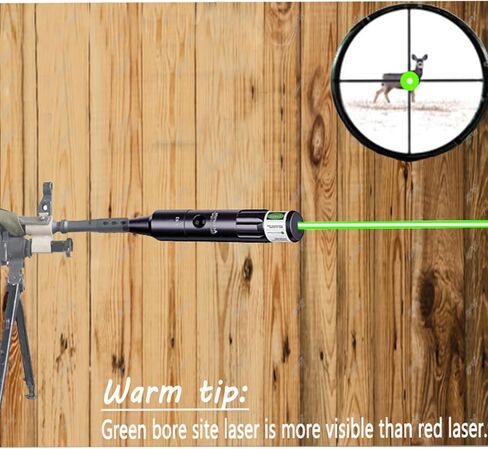

E. When you press the switch button, a bunch of green beam will be emitted. And then you can adjust your scope¡¯s windage and elevation so that your crosshair aims at the red/ green dot.

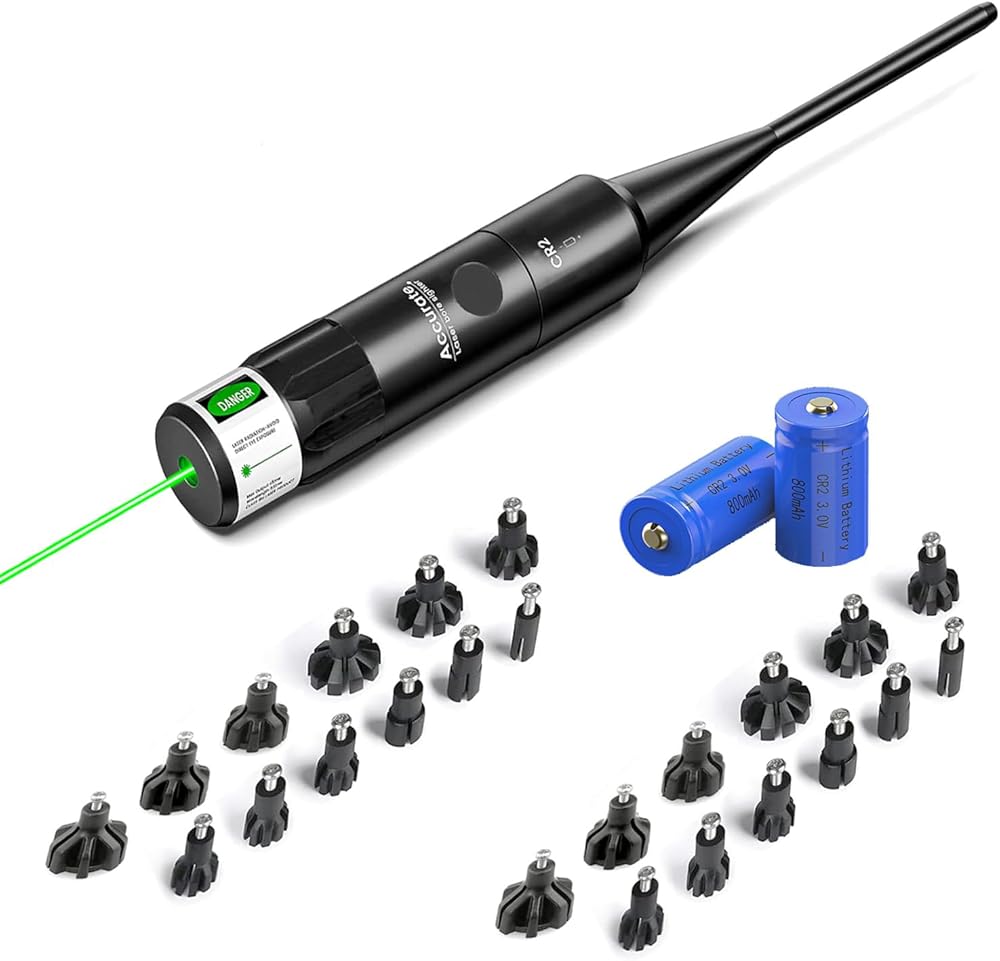

Package Includes:
1x Green Bore Sight (Boresighter)
9x Bore Adapters
4 x Spare screws
1 x Screwdriver
2x CR2 Battery
Warm Tips:
--Keep boresighter's beam away from eyes.
--Before bore sighting your scope, make sure that the firearm is unloaded and the muzzle is pointed in a safe direction.
--After the firearms is bore sighted, make sure to remove the boresighter and adapter from the firearm.
