Battery Monitor Meter with Shunt, PZEM-015 Multifunctional Battery Meter Current Voltage Power Energy Consumption Capacity Test with Manual(with 200A Shunt)

KWD 8
– 1 +

Special Features

  • DISPLAYED SIMULTANEOUSLY: 9 sets of measurement parameters can be displayed simultaneously, and various parameters are clearly visible. The shell of battery tester is made of high-strength material, which is elastic and not easy to break.
  • EXELLENT PERFORMANCE: Multifunctional Battery Meter has high-precision chip control, good electronics, and reliable soldering process.
  • DISPLAY: The remaining battery capacity is displayed by the battery symbol, a total of 10 grids, each grid represents 10% of the electricity.
  • WIDE APPLICATION: The battery tester is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, and running time of various types of batteries, and display measurement data through the LCD.

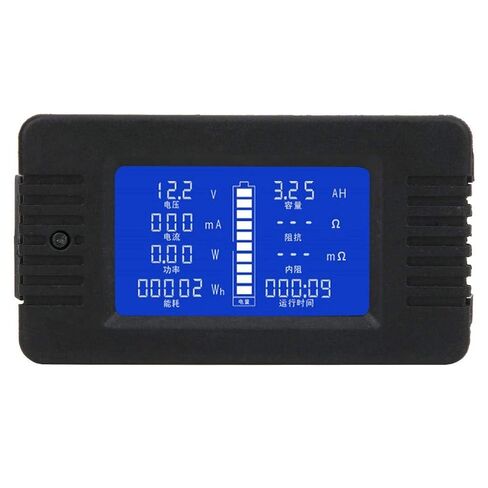

  • SIMPLE TO READ: The LCD screen gives you a better visual experience and easier reading. The power consumption is related to the value of the test voltage. The higher the voltage, the greater the power consumption.

Description

Specification:
Item Type: Battery Tester
1. Voltage:
Measuring Range: 0-200V ( Display Format: Minimum Resolution: 0.01V
Starting Voltage: 0.05V
Measurement Accuracy: 1%
2. Current:
Measuring Range: 0-300A,
Display Format: 3. Power:
Measuring Range: 0-60000W
Display Format: Minimum Resolution: 0.01W
Starting Power: 0.2W
Measurement Accuracy: 1%
4. Impedance:
Measuring Range: 0-1000 Ω
Display Format: --- is displayed when the overrange or current is 0.
Minimum Resolution: 0.1Ω
5. Internal Resistance:
Measuring Range: 0-999mΩ
Display Format: Such as 999mΩ, --- is displayed when the range or current is 0.
Resolution: 1mΩ
Measurement Accuracy: 1%
6. Capacity:
Measuring Range: 0-1000AH
Display Format: Minimum Resolution: 1mAH
Measurement Accuracy: 1%
Package List:

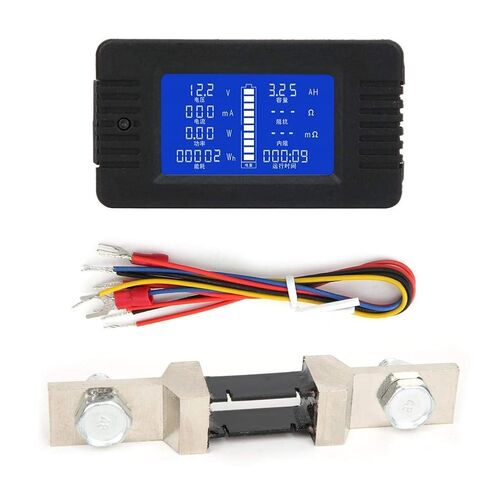

1 x Tester1 x Shunt1 x Manual 1 Set of Wires
