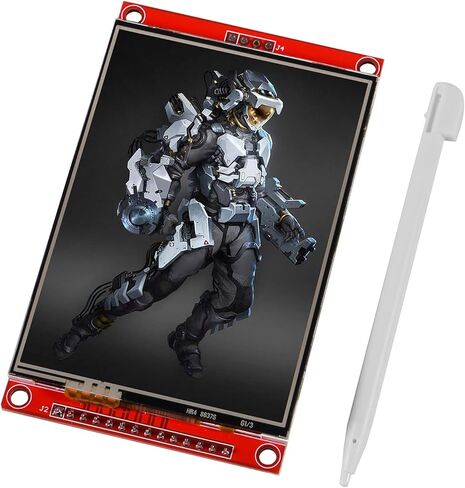

3.2inch SPI Module Touch Screen Shield Display Module SPI Serial ILI9341 320X240 5V 3.3V with Touch Pen

Sorry, this product is not available
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.

Special Features

  • 3.2inch color screen, 320X240 resolution support 65K color display,display rich colors
  • 4-wire SPI Serial,built-in ILI9341driver IC and power supply IC.
  • Using the SPI serial bus, it only takes a few IOs to illuminate the display
  • Easy to expand the experiment with SD card slot
  • 3.2 Inches screen support touch screen function with touch pen

Description

Screen Size : 3.2 inch
Type: TFT
Driver IC: ILI9341
Resolution: 320*240 (Pixel)
Module Interface: 4-wire SPI interface
VCC power voltage: 3.3V~5V
Logic IO port voltage: 3.3V(TTL)
Power Consumption: TBD

Package include:
1 x 3.2" Display touch panel
1 x Touch pen

Note:
If you are using this LCD with a 5V device such as compatible with Arduino, be aware that it doesn't work if WITHOUT level shifting to 3.3v logic.
Please use level shifters from 5V to 3.3V, it will work then.
