Waveshare 1.54 Inch E-Ink Display HAT Epaper Display 200x200 SPI Interface Black White Red Color E-Paper Screen for Raspberry Pi 4B+ 4B 3B+ 3B 2B+ Zero W WH 2 W Jetson Nano

KWD 8
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • This e-ink display monitor has no backlight, keeps displaying last content for a long time even when power down
  • The 1.54 inch e-paper display is ultra low power consumption, basically power is only required for refreshing
  • This waveshare 1.54'' epaper HAT with SPI interface, for connecting with controller boards like Raspberry Pi/Nucleo, etc.
  • The 1.54inch eink screen with onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32), feel free to contact us if you need our help.

Description

Overview

This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports
red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for
applications such as shelf label, industrial instrument, and so on.

Specifications

Operating voltage: 3.3V/5V
Interface: 3-wire SPI, 4-wire SPI

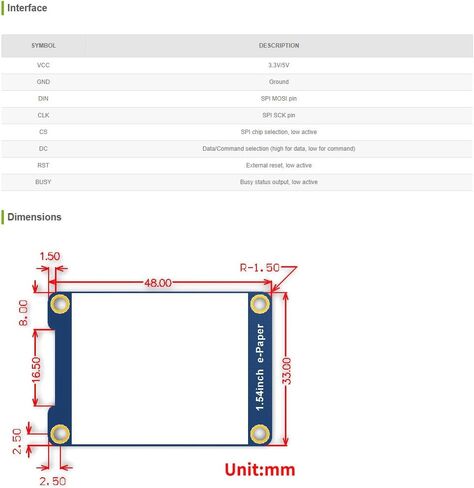

Outline dimension: 48mm × 33mm
Display size: 27.6mm × 27.6mm
Dot pitch: 0.138 × 0.138
Resolution: 200 × 200
Display color: red, black, white
Grey level: 2
Full refresh time: 14s
Refresh power: 26.4mW(typ.)
Standby power: Viewing angle: >170°

Package include

1.54inch e-Paper Module (B) x1
PH2.0 20cm 8Pin x1
