【Operational Modes】The device offers three distinct modes for inspecting and configuring servos and ESCs, enabling the straightforward identification and adjustment of servo characteristics such as deadbands, oscillations, and center positions. It is capable of interfacing with up to three servos from CCPM helicopters, facilitating selection and connection.
【 Utility and Application】Additionally, it is designed to connect with airplane servos, including those with installed steering mechanisms, and to perform adjustments using various modes like the neutral position setting.
【Functionality】This tool serves a dual purpose as a servo centering device and a signal generator for electric speed controllers (ESCs). The multi-servo tester allows you to examine your motor systems without the need for a transmitter or receiver.
【Innovative Features】It provides an effortless method for detecting and setting the virtual bit, jitter, and median for servos. Technical specifications include an input voltage range of DC 4.5 to 6V, an output current of no more than 15mA (at 5.0V), and an output signal ranging from 1.5ms±0.5ms.
【Dynamic Simulation Mode】One of the unique features is the "automatic window wiper" mode, which simulates the motion of a car's wipers, allowing the servo to oscillate through its maximum angle.
Description
Product Parameters:
✔ Material: Plastic
✔ Output: ≤15mA (5.0)
✔ Input Voltage: DC4.2-6V
✔ Output Signal: 1.5ms±0.5ms

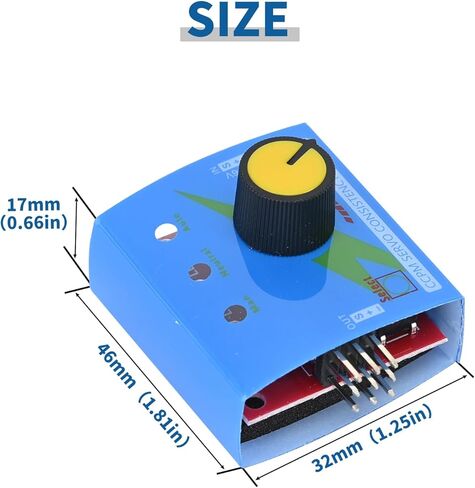

✔ Size: 46mm x 32mm x 17mm / 1.81'' x 1.25'' x 0.66'' (Approx.)
