Myactuator RMD-L-7025-28T Micro Brushless DC Servo Motor Driver, BLDC Motor 200W 24V 1.6N.M for Vehicle PTZ, Cooperative Robot PTZ Motor, Quadruped Robot Dog, Drone

KWD 71.500

1 +

Special Features

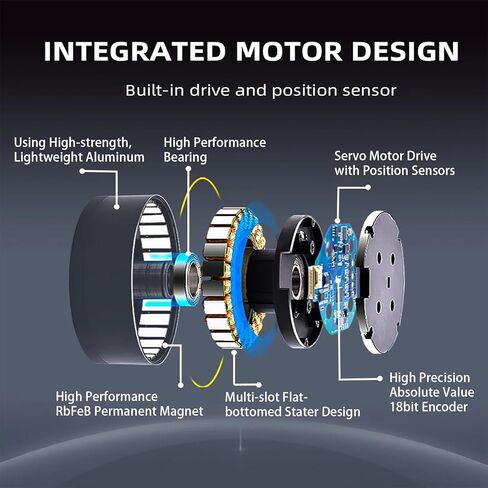

  • 【INTEGRATED MOTOR DESIGN】 RMD-L-7025-28T is a highly integrated servo motor module, mechatronics design with built in motor drive and position sensor. (RMD: Reducer Motor Drive; L: Integrated Drive Actuator Series; 7025: Motor Type; 28T: 28 Turns)

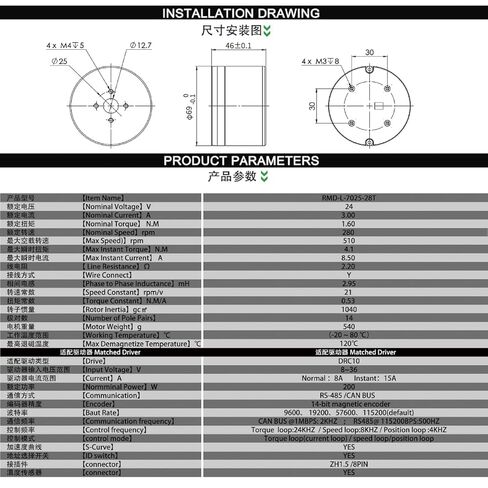

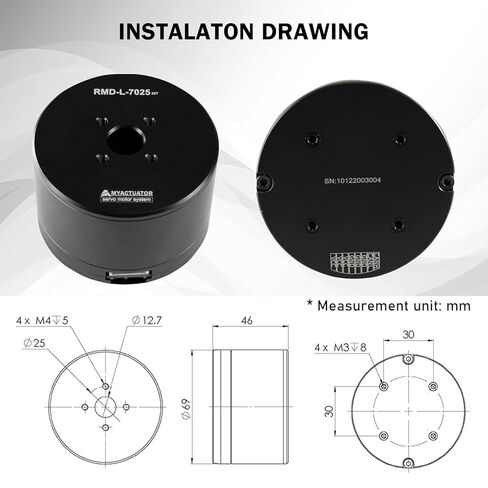

  • 【TECHNICAL PARAMETERS】Nominal voltage: 24V; Nominal torque: 1.6N.M; Max Instant Torque: 4.1N.M; Nominal Power: 200W; Nominal Speed: 280rpm. Adaptation driver type: DRC10. Environmental condition of working from -40 to 80 celsius. Motor Size: 6.9x4.6cmcm / 2.72x1.81inch; Motor Weight: 540g / 1.19pounds
  • 【COMPATIBLE WITH HOST COMPUTER SOFTWARE】Easy to use program software to adjust parameters. Support MCU to send commands directly. Support RMD Assistant setting, simple and easy usin. Support temperature sensors, read the temp in real-time. Communication method: Can Bus
  • 【HIGH CONTROL ACCURACY】High precision absolute value encoder. Encoder accuracy reach up to 0.005 degrees 18 bits. Maximum speed reach up to 25,000RPM time-lapse as low as 2us. Just one proofreading, zero points are never lost. Don't have to find zero point with power failure/cut
  • 【MULTI-PROTECTION, MORE DURABLE】Micro servo motor with high performance bearings, reinforced aluminum alloy body. Flat structure, strong bearing capacity. High-performance Ndfeb permanent magnets, with arc designs, provide greater torque
  • 【FIELDS OF APPLICATION】Apply for the filed which need precise control low speed and large torque, such as service robot, laser radar, gimbal, PTZ, Turntable, inspection robot and laboratory test equipment
