Specification:
Item type: RC Aircraft Accessory
Material: Plastic + Metal
Color: As picture shown
Weight: Approx. 136g
SG90 9g servo parameters:
Size: Approx. 21.5x11.8x22.7mm/0.8x0.5x0.9in
No-load speed: 0.12 seconds / 60 degrees (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Working temperature: -30℃~ + 60 ℃
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V
2212 motor specifications:
Motor size: Approx. 27.5x 30mm/1.1x1.2in
Shaft diameter: Approx. 3.17mm/0.1in
KV: 2200KV
30A ESC specifications:
Plug: XT60
Continuous current: 30A
Maximum current: 40A (10S)
Power input: 2-3 lithium batteries or 5-9 - batteries (not included)
BEC output: 2A / 5V (linear regulator mode-linear mode)
Maximum speed: 210,000rpm for a 2-pole BLM, 70,000rpm for a 6-pole BLM, and 35,000rpm for a 12-pole BLM.
Application: RC remote control drone

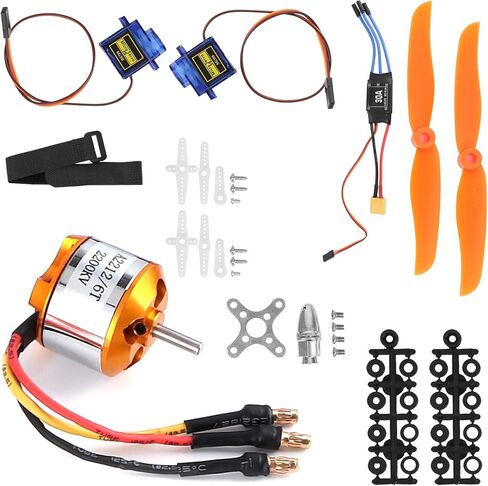

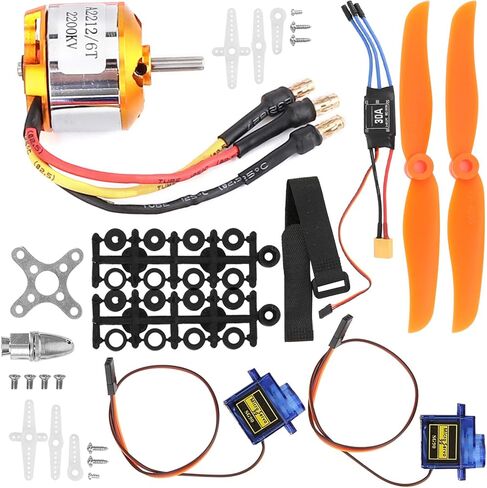

Package List:
1 x Motor
2 x Propeller
2 x Servo
1 x ESC
1 x Motor base
1 x Projectile heads
6 x Servo arm
1 x Fixing belt
10 x Screw
2Rows x Propeller washer
