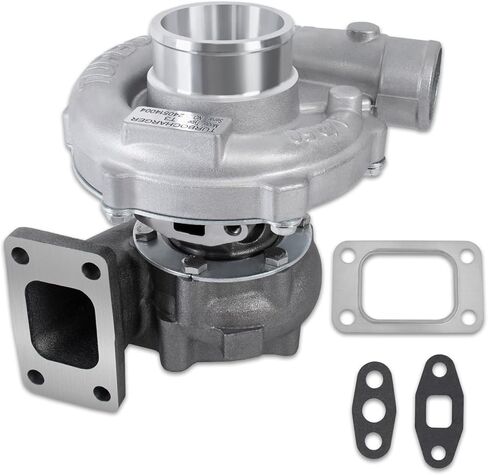

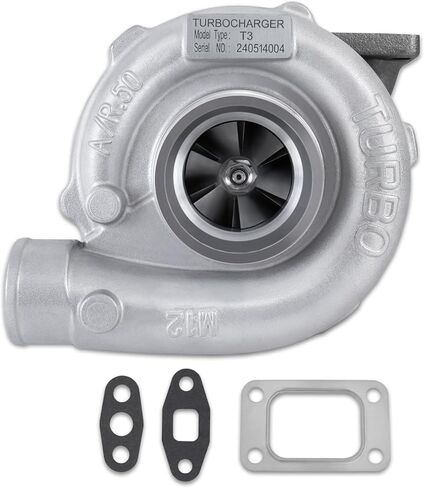

T04E TurboCharger with Gaskets T3 T4Flange 0.57 Turbine A/R 400+ HP Universal TurboCharger Raplacement Boost for 1.5L-2.5L Engines

Special Features

【Application】Bigger HP Applications, Compatible for 1.5L to 2.5L any 4/6 cylinder engine Maximum PSI 18(1.2Bar)
【Premium Quality】①Ductile iron QT450-10 - temperature resistant up to 700℃.②K418 alloy - high resistance up to 900℃.③ZL104 aluminum with lightweight.④Cast aluminium blades – superior air tightness & anti-corrosion resistance.High-quality materials are more trustworthy
【Package included】1×Turbocharger，1×gasket set
【Function】Our turbochargers are excellent at increasing the power and torque of the engine, outputting more power. Deliver better performance and acceleration to your vehicle
【Attention】Please refer the description for detailed product information and compatibility information

Description

【Compatibility】
Bigger HP Applications, Compatible for 1.5L to 2.5L any 4/6 cylinder engine Maximum PSI 18(1.2Bar)
【Specification】
Turbine Intake Flange: T3 T4 4 bolt Flange Patterns
Turbine Exhaust Flange: Standard T3 5 bolt flange pattern
Wastegate: w/o Wastegate
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Turbine Trim: 74.2
Turbine A/R: 0.57
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inlet: 45mm/87mm
Compressor outlet: 42mm (inside diameter) , 52mm(Outer diameter)
Compressor inlet: 68 mm (inside diameter), 77mm(Outer diameter)
Oil Inlet: M12*1.25
Oil Outlet: 2*M8*1.25
Cooling Type: Oil Cooled
Bearing Type: Floating Bearing/Journal Bearing
Trust Bearing: 270 degree
Hosepower: Up to 400+HP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
