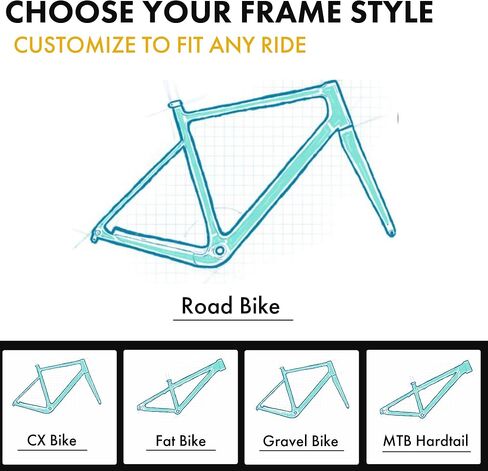

STANDARD ROAD BIKE

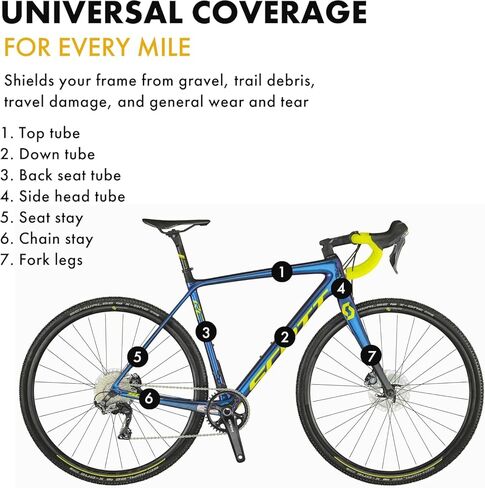

The measurements for each component are as follows: the top tube and down tube each measure 19.69 x 2.76 inches. The back of the seat tube (two pieces) measures 12.99 x 1.57 inches, while the seat stays (also two pieces) are 19.69 x 0.98 inches. The chain stays (two pieces) measure 12.99 x 1.77 inches. For the fork cover, the straight fork legs (two pieces) are 12.99 x 1.77 inches tapered, and the curved fork legs (two pieces) are 13.62 x 1.57 inches tapered. Small cable rub dots have a diameter of 0.87 inches (four pieces), and large cable rub dots measure 1.1 inches in diameter (three pieces). The rectangular cable rub patches come in two sizes: three pieces measuring 1.65 x 1.06 inches and one larger patch measuring 3.94 x 1.38 inches.
MAXI ROAD BIKE
The component measurements for this kit are as follows: the top tube is 23.03 x 2.76 inches, while the down tube measures 23.03 x 7.09 inches. The back of the seat tube (two pieces) measures 12.99 x 2.56 inches, and the seat stays (two pieces) are 23.03 x 1.57 inches. Each chain stay (two pieces) measures 14.96 x 3.15 inches. The fork cover for the straight fork legs (two pieces) is 15.24 x 3.94 inches, tapered to 1.77 inches. The kit also includes four small cable rub dots with a diameter of 0.87 inches and three large cable rub dots with a diameter of 1.1 inches. There are six rectangular cable rub patches, each 1.65 x 1.06 inches, and two square cable rub patches measuring 2.36 x 2.36 inches. Additionally, there is a larger rectangular cable rub patch measuring 6.5 x 2.36 inches. This kit also includes a fitting kit, an application and removal guide, and a shape key
Gravel Kit
The measurements for this kit are as follows: the top tube is 23.03 x 5.55 inches, and the down tube measures 23.03 x 7.09 inches. The back of the seat tube measures 23.03 x 2.56 inches. The head tube pieces (two in total) each measure 5.83 x 2.36 inches. The seat stays (two pieces) are 23.03 x 1.97 inches, while each chain stay (two pieces) measures 15.24 x 2.56 inches. The fork cover for the curved fork legs (two pieces) is 15.24 x 3.94 inches, tapered to 2.36 inches. Additionally, there are six large cable rub patches, each measuring 2.36 x 2.36 inches. This kit also includes a fitting kit, an application and removal guide, and a shape key
HARDTAIL BIKE
The measurements for this kit are as follows: the top tube measures 21.65 x 2.95 inches, and the down tube is 22.83 x 3.54 inches. The back of the seat tube is 22.83 x 2.2 inches. Each seat stay (two pieces) measures 14.17 x 1.18 inches, while each chain stay (two pieces) measures 12.2 x 1.38 inches. The small cable rub dots have a diameter of 0.87 inches (four pieces), and the large cable rub dots measure 1.1 inches in diameter (three pieces). There are three rectangular cable rub patches, each 1.65 x 1.06 inches, and one larger rectangular patch measuring 3.94 x 1.38 inches. The L-shaped side of the head tube parts (two pieces) measure 4.37 x 3.98 inches. This kit also includes a fitting kit, an application and removal guide, and a shape key
GENERIC CX KIT
The measurements for this kit are as follows: the top tube measures 16.54 inches, tapering from 3.94 to 2.95 inches, while the down tube measures 19.29 inches, tapering from 3.11 to 2.76 inches. Each side of the head tube measures 4.92 x 1.97 inches. The back of the seat tube measures 12.2 x 2.76 inches. The seat stays (two pieces) are each 15.75 x 1.18 inches. The left chain stay measures 12.99 x 1.97 inches, and the right chain stay is 12.99 x 1.38 inches. The fork cover for the fork legs (two pieces) measures 12.8 inches, tapering from 3.15 to 1.97 inches. Small cable rub dots have a diameter of 0.87 inches (four pieces), while large cable rub dots measure 1.1 inches in diameter (three pieces). There are three rectangular cable rub patches, each measuring 1.65 x 1.06 inches, and one larger rectangular patch measuring 3.94 x 1.38 inches. This kit also includes a fitting kit, an application and removal guide, and a shape key
Fat Bike Kit - GENERIC STEEL/TITANIUM
The measurements for this kit are as follows: the top tube is 23.03 x 4.13 inches, and the down tube is also 23.03 x 4.13 inches. Each side of the head tube measures 4.49 x 2.24 inches. The back of the seat tube measures 14.57 x 2.36 inches. Each seat stay measures 17.13 x 1.77 inches, while the left chain stay is 17.64 x 2.36 inches and the right chain stay is 14.57 x 2.36 inches. The fork legs measure 11.81 inches, tapering from 2.56 to 1.65 inches. Small cable rub dots have a diameter of 0.87 inches (four pieces), while large cable rub dots measure 1.1 inches in diameter (three pieces). There are three rectangular cable rub patches, each measuring 1.65 x 1.06 inches, and one larger rectangular patch measuring 3.94 x 1.38 inches. This kit also includes a fitting kit, an application and removal guide, and a shape key.
GENERIC CARBON KIT
The measurements for this kit are as follows: the top tube measures 23.03 inches, tapering from 5.71 to 4.17 inches, while the down tube is 23.03 x 7.01 inches. Each side of the head tube measures 4.49 x 2.24 inches. Each back of the seat tube is 14.57 x 2.36 inches. The seat stays (two pieces) measure 17.44 inches, tapering from 1.61 to 1.18 inches, and each chain stay measures 16.3 inches, tapering from 1.97 to 1.18 inches. The fork legs (two pieces) are 11.81 inches, tapering from 2.87 to 1.97 inches. Small cable rub dots have a diameter of 0.87 inches (four pieces), while large cable rub dots measure 1.1 inches in diameter (three pieces). There are three rectangular cable rub patches, each measuring 1.65 x 1.06 inches, and one larger rectangular patch measuring 3.94 x 1.38 inches. This kit also includes a fitting kit, an application and removal guide, and a shape key.
