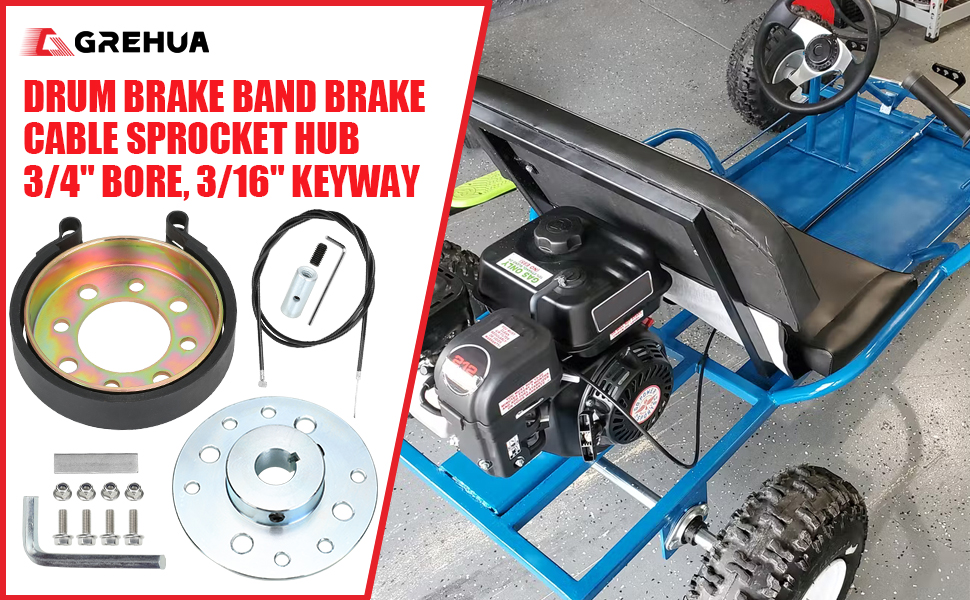

GREHUA Rear 4" Drum Brake Band & Steel Sprocket Hub Kit for Go Kart Cart Drift Trike Mini Bike Dune Buggy Quad ATVs Predator 212cc 196cc Parts Rear Axle Rod Mounting Kit 3/4" Bore 3/16" Keyway

FITMENT: go kart sprocket hub is compatible with Predator 212cc 196cc 6.5hp GX160 GX200 drift trike mini bike dune buggy quad ATV go-kart cart parts
HIGH QUALITY: go kart drum brake kit made of premium 45# steel material has good balance, is sturdy and durable. The brake band does not attach directly to the axle, so it would theoretically fit any size live axle. But the sprocket brake hub works for 3/4" Bore 3/16" Keyway go cart axle
EASY TO INSTALL: the brake drum has a universal mounting hole pattern with both 5/16" & 3/8" bolt holes, those 8 bolt holes will match those on your wheel brake hub. There is a hole on either end of the brake band. One end fastens to a stud mounted on the cart but is still able to pivot, and the other end fastens to your brake rod. Align the key ways in the sprocket and then bolt a sprocket to it, and axle install a key in the key way in the sprocket and in the axle shaft then tighten the set screws

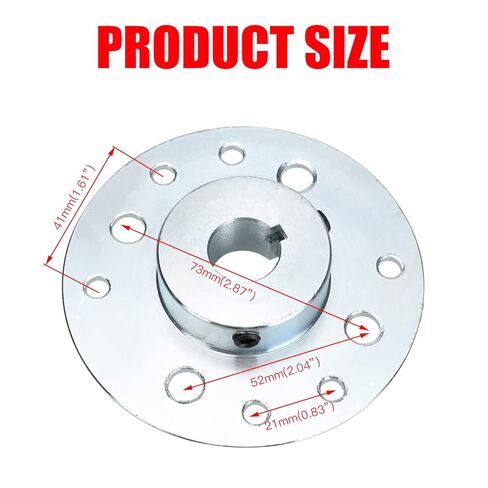

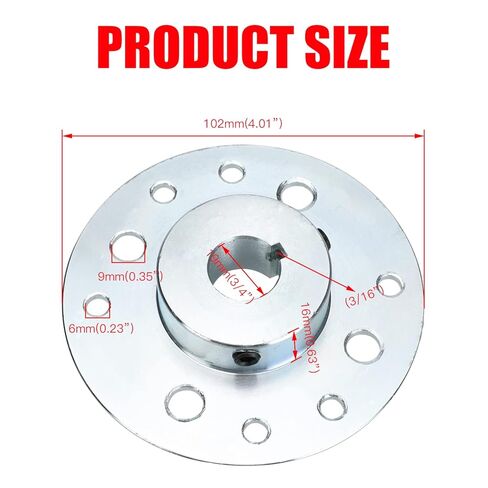

PRODUCT SIZE: Brake Band: Wide--0.99"(25mm), Thickness--0.24"(6mm), OD--4.84"(123mm), ID--4.37"(111mm); Brake Drum: Diameter of mounting hole--0.31"(8mm) / 0.39"(10mm), OD--4.2"(107mm), ID--2"(51mm); Sprocket: OD--4", Bore--3/4", Axle key/Keyway--3/16"
PACKAGE INCLUDED: 1 x brake drum, 1 x brake band, 1 x brake pin, 1 x brake cable, 1 x sprocket hub, 1 x keyway, 2 x wrench, 4 x screws, 4 x nuts
