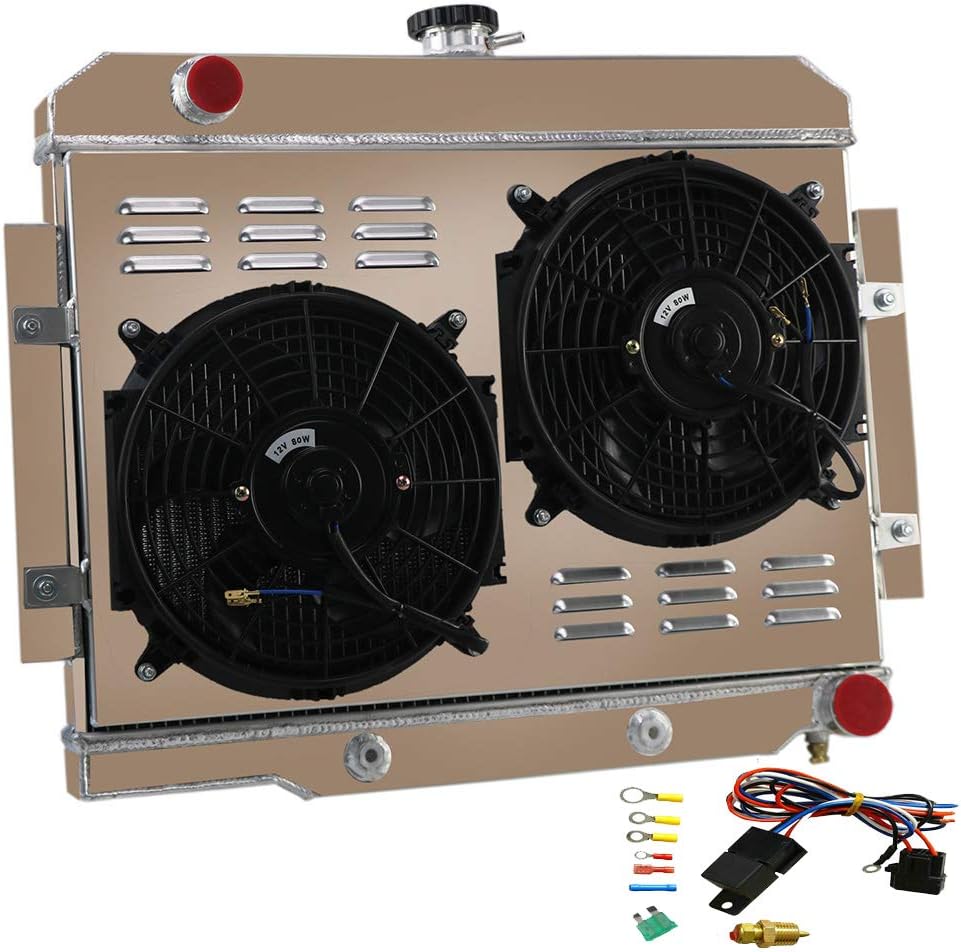

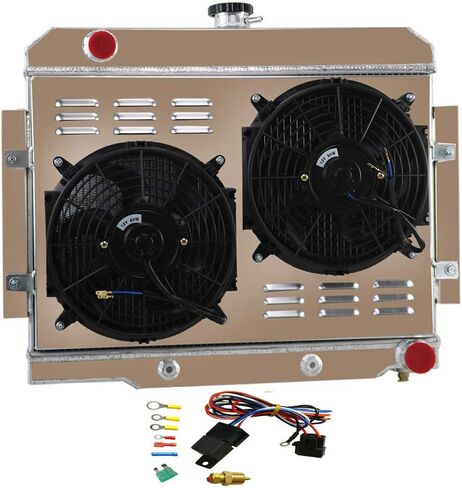

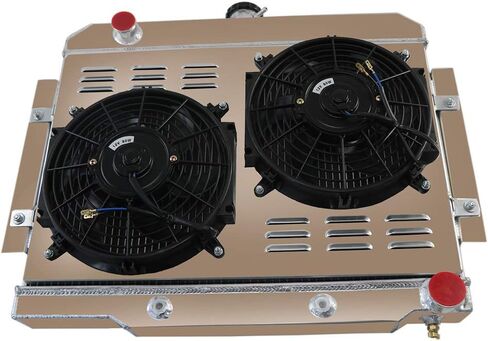

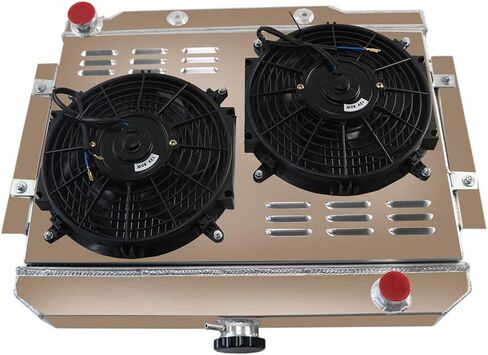

ALLOYWORKS 4 Row Radiator For 1972-1986 Jeep CJ5 CJ6 CJ7 CJ Series Chevy 350 V8 Swap Conversion Downflow Radiators with Shroud Fan Relay Kit, AT MT, All Aluminum Radiador

KWD 130.500
Weight
11.8 kg
– 1 +

Special Features

  • [Applications] Replacement for Jeep CJ5 CJ6 CJ7 Chevy V8 Conversion 1972 1973 1974 1975 1976 1978 1979 1980 1981 1982 1983 1984 1985 1986
  • [Specification] CORE: 16'' TALL X 24'' WIDE; OVERALL: 22''' TALL X 27'' WIDE; BRACKET MOUNTING ACROSS: 25 3/4''; UPPER HOSE CONNECTION: 1 1/2'' (LEFT SIDE); LOWER HOSE CONNECTION: 1 3/4'' (RIGHT SIDE);

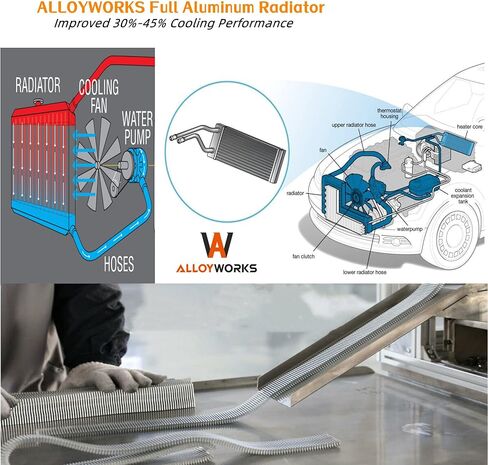

  • [Premium Aluminum Radiator] The radiator is made of Aircraft AA5052 aluminum, constructed with 100% welded seams by TIG, brazed core technology and no epoxy. Direct fit and built to last long with high quality aluminum core.
  • [Higher Density Core] Cooling rows are spaced 3/8 inches apart, giving you 25% more rows within the core compared with most of the other radiators. Also, 14-16 cooling fins per inch give you approximately 1500 more cooling fins and provides 30% more cooling capacity than an usual aluminum radiator.

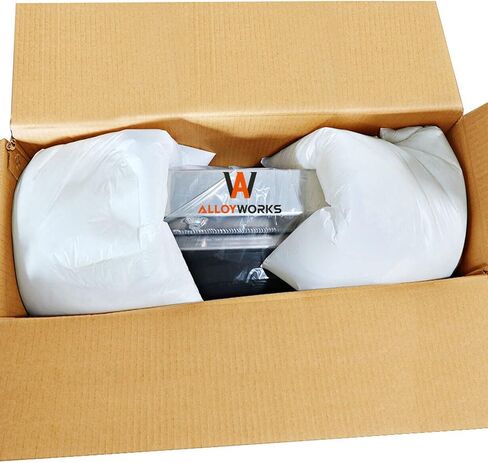

  • [No Leaking Worries] All radiator have to go through 5 checks in the whole process.100% leaking and pressure tested. Thickened packing(either carton or wooden box), foam with shock absorption. Delivery: US Local Delivery.
  • [Easy To Install] Brand-new radiator engineered and manufactured to meet original specifications for quick installation. CNC turret punch machine ensure the accuracy of radiator size. No Drilling or Modifications Needed for Installation.
  • Please use Amazon's vehicle fitment tool to confirm that the part is correct for your vehicle application before buy.

Description

Please Note:
This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!
Inlet Location：On Driver Side
Outlet Location：On Passenger Side

Vehicle Fitment:
For 1972-1986 Jeep CJ Series CJ5 CJ6 CJ7 &/ Chevy V8 Conversion

Radiator：
MATERIAL : FULL ALUMINUM

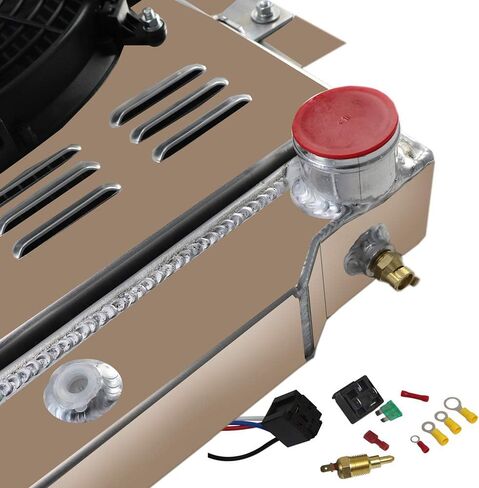

Petock Drain:OEM style brass petcock drain
CORE: 16'' TALL X 24'' WIDE;
OVERALL: 22''' TALL X 27'' WIDE
BRACKET MOUNTING ACROSS: 25 3/4''
UPPER HOSE CONNECTION: 1 1/2'' (LEFT SIDE)
LOWER HOSE CONNECTION: 1 3/4'' (RIGHT SIDE)
Material: Full Aluminium
Core and Tank: All Aluminum
High Performance Racing Spec.
Mounting Style: Screw-On
Radiator style: Downflow
Fit type: Vehicle Specific
Crafts: 100% Tig welded
Delivery: Local Delivery
Fitment Type: Direct Replacement
Performance: Up to 30%~45% more cooling
Placement on Vehicle: Engine Compartment
Surface Finish: Aircraft Grade Raw Aluminum
Petock Drain: OEM style brass petcock drain
Radiator Cap: CNC machined filler neck and cap

Fans Details：
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 10.050”
Thickness (in): 2.500”
Number of Blades: 6 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps

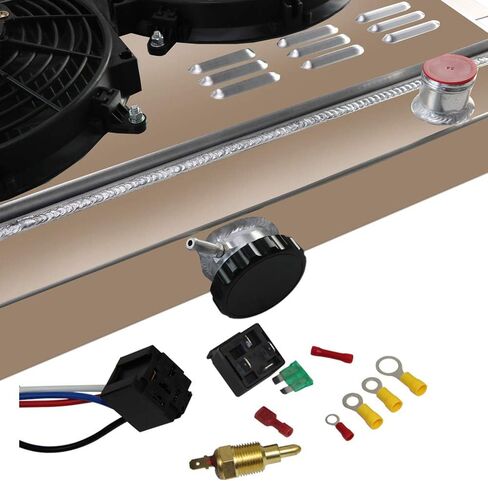

Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.

Thermostat Sensor Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Gentle Hint:
Parameters Meticulous Prior to Ordering.
Pls compare the overall width with your original radiator.
Professional installation is highly recommended! No Fitting Instructions Supplied!
Please contact us for installation video or other any problem.
