Fuel Filter Air Bleeder Service Kit Compatible with Ford Powerstroke 6.4L 2008~2010 Diesel Engines F250,F350,F450,F550

KWD 12
Brand
EnRand
Weight
499 g
SizeFuel Filter Air Bleeder
– 1 +

Special Features

  • ✅Compatible with Ford 6.4L Powerstroke Diesel engine, 2008 - 2010 F250 F350 F450 F550.
  • ✅High quality polyethylene hose and premium brass fittings ensuring optimal protection, service life, and safety.
  • ✅Air can get into the fuel system when changed fuel filters, it will cause the engine to fail to start. But this fuel filter air bleeder service kit will help you got all the air out of the fuel system , definitely a must have if you have a 6.4L Powerstroke Diesel.
  • ✅Have 12mm Banjo bolt test port,The interface has threads, easy to install, but need make sure to tighten the fittings on the hose tight so it doesn't leak.

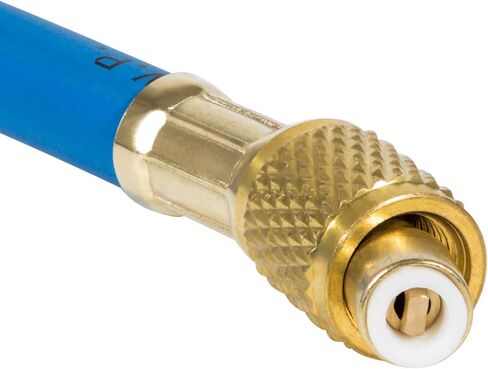

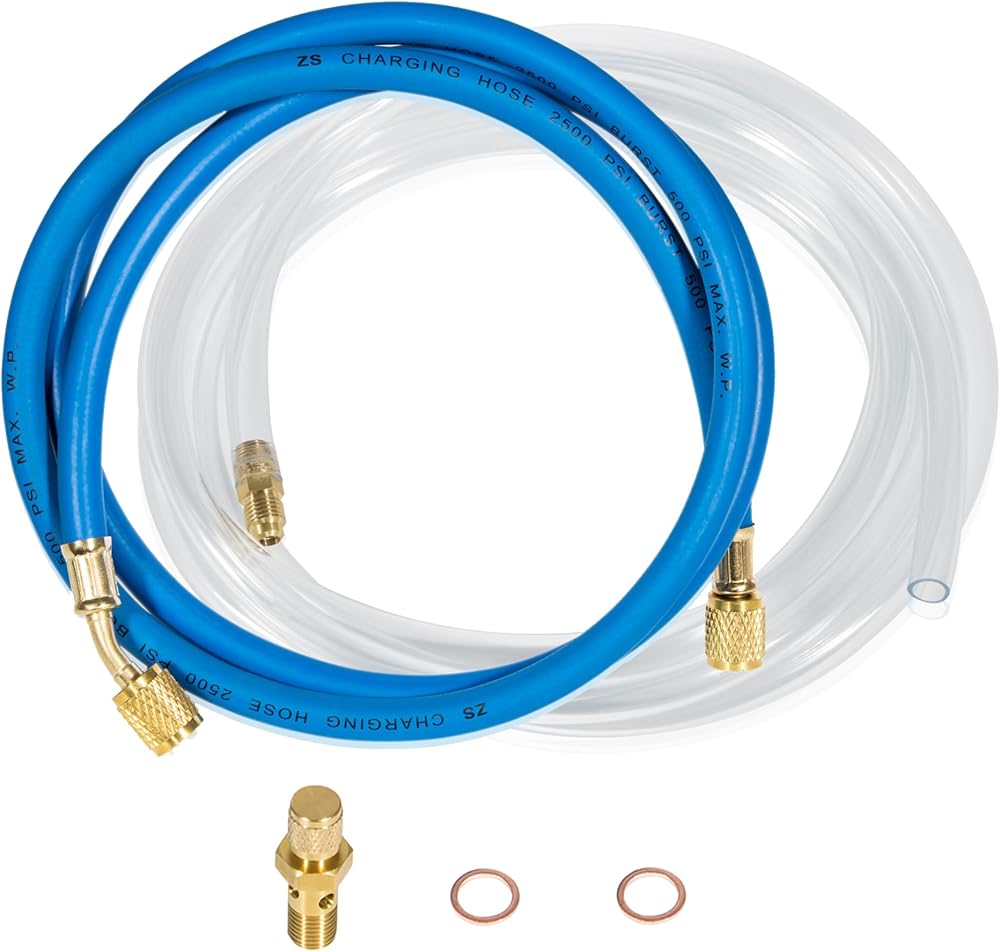

  • ✅Package Includes :1- Extended length Hose with Schrader valve connection &1- Extended length transparent poly hose &1- 12mm Banjo bolt test port.

Description

INSTALLATION STEPS:

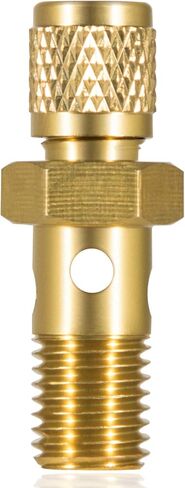

🏷️1. Remove the rear banjo bolt from the fuel cooler and install the 12mm test port with Schrader valve in its place.
🏷️2. Remove brass cap from Schrader value and attch one end of the blue hose to the value.
🏷️3. Attach other end of blue hose to the clear tubing with brass fitting.
🏷️4. Remove fuel cap and inset the end of clear tubing into the gas neck.
🏷️5. Turn key to the "ON" position (without cranking the engine). The fuel pump will engage and you will see both diesel fuel and air bubbles moving through the clear tubing. Repeat this step until no air bubbles are visible in the fuel flow.
🏷️6. When you have bled all the air from the fuel system, you may either leave the test port with Schrader value in place or remove it and reinstall the original banjo bolt, whichever you prefer.
