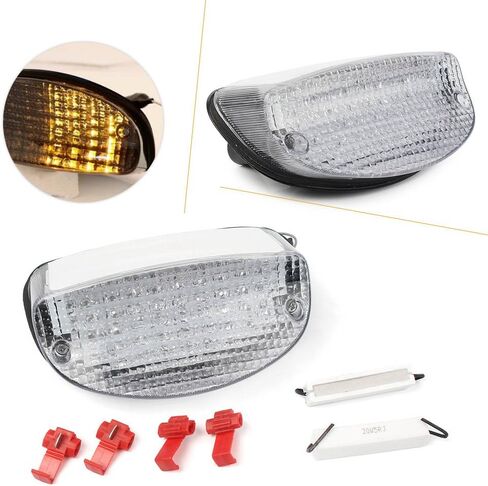

Motorcycle LED Brake Taillight Integrated with Built-in Turn Signals

Fitment:
Compatible for SUZUKI 2008-2009 GSX650F
Compatible for SUZUKI 2003-2005 GS500F

Compatible for HONDA 1999-2005 SHADOW VLX
Compatible for HONDA 1999-2005 SHADOW SPIRIT 1100
Compatible for HONDA 1997-1998 CBR 1100XX
Please make sure if this item fits your motorcycle before purchase

Specification and features:
-Lens Color: Smoke
-LED Color: Red(80pcs), Amber(72pcs)
-Multi-function tail light, braking light, running light, comes with amber built-in turn signals
-Perfect quality unit, will not fog up or accumulate moisture
-Very nice and bright, less power and long life service

Installation:
1. Connect the two YELLOW wires to the positive turn signal wires by provided red connectors or your existing factory connectors
2. Ground wire is not needed unless you are using resistors to slow down the blinking rate. (The ground wire is the same color wire used on both turn signals)
3. To remove the error code on dashboard or slow down the blinking rate by provided resistors if necessary

Wiring Diagram compatible for most motorcycles:
Black Wire(Negative)
Green Wire(Brake)
Red Wire(Running Light)
1. Connect one end of the resistor to the ground wire on your turn signal harness from your bike
2. Connect the other end of the resistor to both the YELLOW wire from our taillight and the positive turn signal wire from your turn signal harness from your bike
3. Repeat the same process for the other side
4. To use the red connectors, place one wire inside along one channel, place another wire inside along the other channel
Push down the metal pin as it will make a small cut on each wire bridging the connectors
If you are using the resistors, place one end of the resistor in the middle of either channel with the one wire

Package Includes:
1pcs x Motorcycle LED Tail Light
