【Package】Automotive Electrical Wire Connector Kit include 310pcs male female plugs which are 2 pin connector -10 sets, 3 pin connector -10 sets, 6 pin connector- 5 sets, 9 pin connector -5 sets, and 250 pcs-125sets male female terminals.
【Housing Connector Performance】 The housing connectors is made of PA66 material, 2.36mm diameter, rated voltage is 250V AC/DC, operating temperature -40℃ to +105℃, the flame retardant grade is UL94-V2. Compatible with Molex Standard .093 "Series connector-5.03MM pitch. PLEASE NOTE: The connector housing is transparent white. Exposure to air may result in slight color differences, but it doesn't affect the performance of the product. If you have any questions about this, please contact us anytime.
【JRready Housing Connector Design】 The housing use a snap-in design ,the buckle does not loosen or fall, easy to disassemble and assemble and supports free assembly of connectors and pin jack terminals. different shape design of the two end of socket avoid mis-matching during the assembly process.
【Terminal Contact】 Brass tinned material, 2.36mm diameter, Wire size Range 14-20 AWG(0.5mm²to 2mm²), 12A MAX. Crimp terminals have strong stability and conductivity, easy to crimping with wire and installing into connector.Dual-locking tangs of the Terminal help prevent backing out ensuring a strong electrical connection. Opening design reduces the insertior force and improves the insertion and extraction durability more than 100 times.

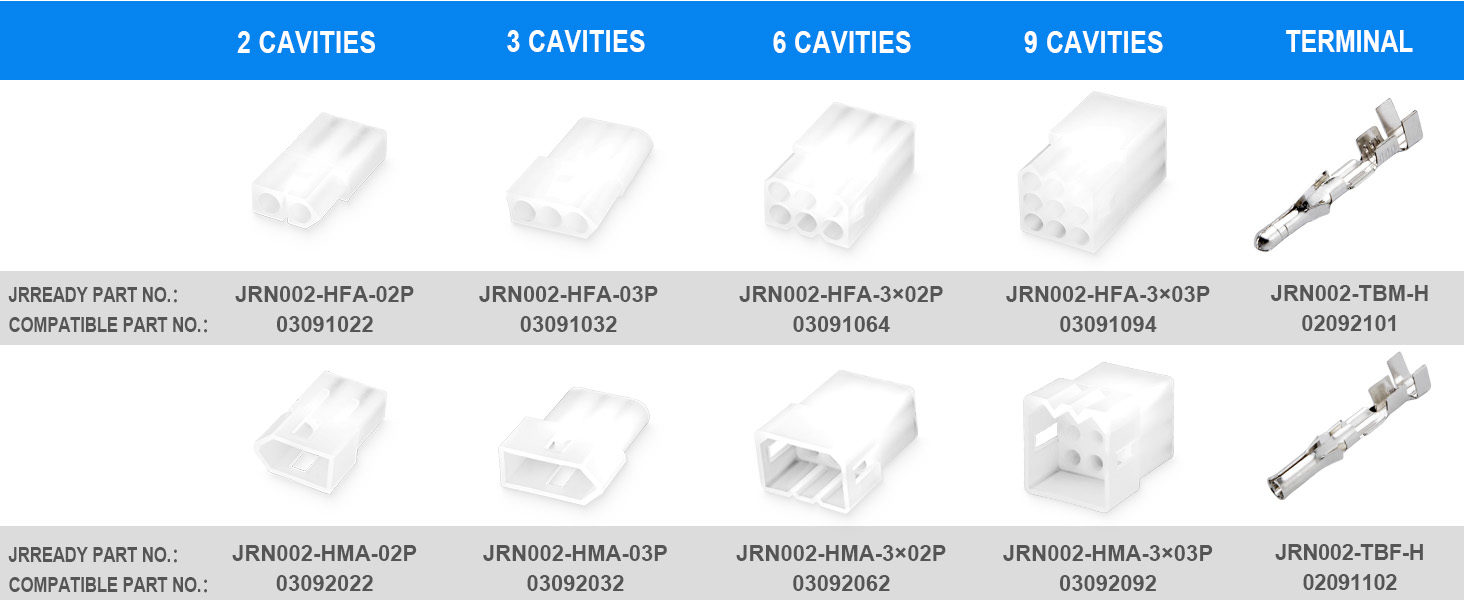

【Compatible with MOLEX Models】 Molex Standard .093" Series Connectors: 2 pin connector-03091022/03092022; 3 pin connector-03091032/03092032; 6 pin connector-03091064/03092062; 9 pin connector-03091094/03092092; Contacts pin: 02092101 / 02092103，socket: 02091102 / 02091104.
【Wide Application】Due to its high reliability, excellent sealing performance and durability, these connectors are widely used in Home appliances, consumer electronics, automotive, heavy equipment, industrial automation and internet communication industries to name a few.
