500mm

KWD 5
Brand
Aoje-Link
Size500mm
– 1 +

Special Features

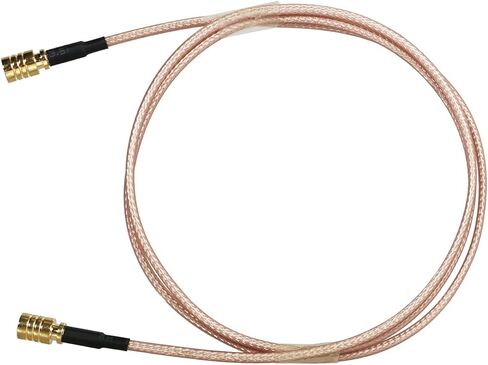

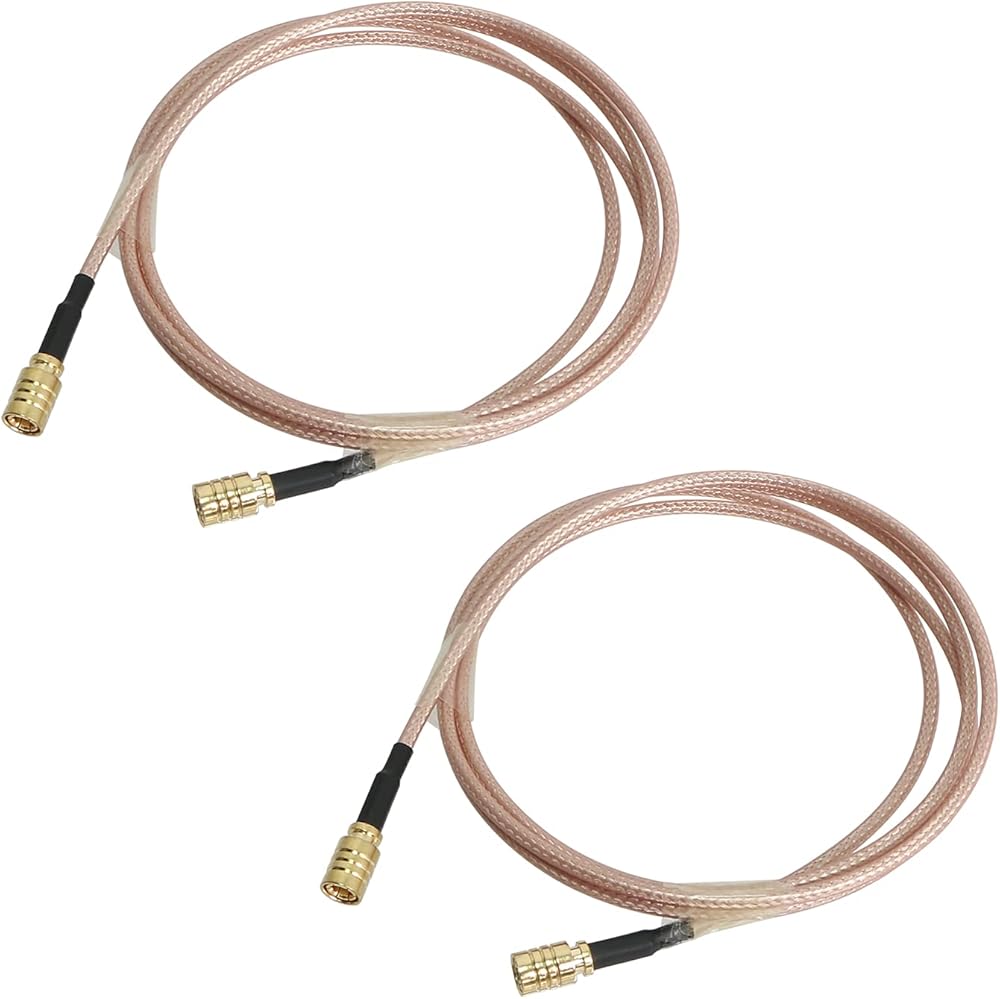

  • Connector 1: SMB Female Straight, Connector 2: SMB Female Straight.
  • Cable Model: RG316, Length: 300mm(0.98ft), Impedance: 50Ω, Cable Dia: 2.5mm.

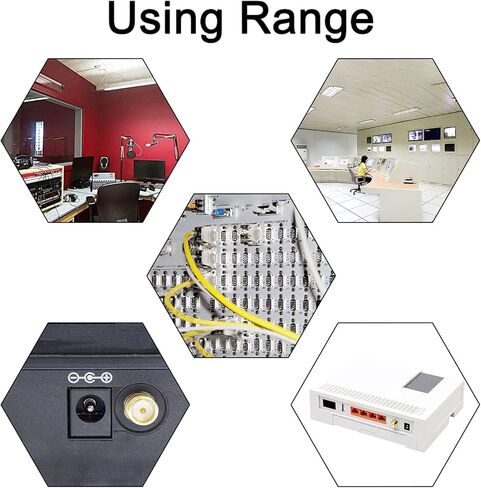

  • Application: Perfect for DIY radio, antennas, audio and video signal Transmission, UAV camera system.
  • Structure: The Coaxial coax cable adopts a high temperature resistant protective outer layer, an aluminum foil layer for anti-interference, a tightly woven metal mesh, an insulating material layer, and a metal copper core conductor.
  • Features: RG316 coaxial cable has good tensile strength and anti-interference, flexibility, waterproof, rust-proof, reduced signal attenuation, long-distance transmission and other excellent characteristics.

Description

Coaxial cable refers to a cable with two concentric conductors, and the conductor and the shielding layer share the same axis.

Coaxial cable can be used for the transmission of both analog and digital signals and is suitable for a variety of applications, the most important of which are television transmission, long-distance telephone transmission, short-distance connections between computer systems, and local area networks etc.

Cable Model: RG316
Outer Material: FEP
Wire Core Material: Copper Silvering
Cable Shape: Round
Cable Color: Pale Red
Cable Dia: 2.5mm
Operating Temp: -67~392℉

Electrical Characteristic at 68℉
Impedance: 50Ω
Frequency: 3000MHz
0~6GHZ VSWR: ≤ 1.5
Tensile Strength: 1.76kgf/cm²
0-3GHZ Attenuation: ≤ 0.51dB/FT
0-6GHZ Attenuation: ≤ 0.75dB/FT
