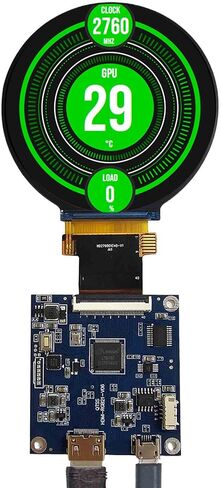

2.8 inch 480X480 IPS MIPI 330nit Circle LCD Screen and Mini HDMI 40 pins Controller Board

KWD 20.500
Brand
FanyiTek
Weight
199 g
– 1 +

Special Features

  • 【Round MIPI screen】2.8" 480x480 circle display,IPS full viewing angle,outline size:77.59x73x2.4(W×H×D)mm,display area:70.13x 70.13(W×H)mm,330nit high brightness ,WLED backlight ,input voltage: 2.8V .
  • 【Controller board】Video input :mini HDMI port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
  • 【Input Power】5Vdc More than 1A,Pls prepare it seperately .
  • 【Plug and play】Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
  • 【Packing lists】1× Micro HD LCD Board VS-TURBOR-04 ,1×4inch VS40016C31 720x720 LCD Screen,1x Mipi signal Cable

Description

LCD Controller Board:
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Video Input: Micro HDMI
HDMI: Support HDMI 1.4
Board Size: 50mm x 35mm x 5mm

2.8" VS276001C40-V2 480X480 LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 480(RGB)x480
Outline Size 77.59x73x2.4(W×H×D)mm
Display Area 70.13x 70.13(W×H)mm
Brightness 330 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Mipi, 40 pins ,
Backlight WLED
Input Voltage 2.8V (Typ.)

Packing list:
1× Micro HDMI LCD Board
1×2.8inch VS276001C40-V2 480x480 LCD Screen
