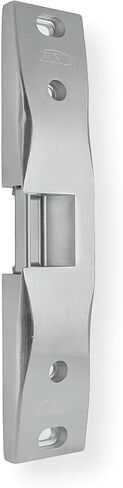

RCI 0162-32D Surface-mount Electric Strike; Accommodates 1/2" to 3/4" Latch Projection; Mounting Spacer Included; Stainless Steel Constructions; Horizontal Adjustment; Plug-in Wire Connectors

The 0162 electric strike accommodates 1/2" to 3/4" latch projection and is designed for use with Pullman latch rim exit devices. As a completely surface mounted strike the RCI 0162 requires no cutting of the door frame. The rugged stainless-steel strike accommodates hollow metal, aluminum and wood door frames. Its heavy-duty housing is reinforced to eliminate twisting in the case of imperfect frames. The one-piece conventional keeper promotes even load distribution for increased security in the event of an attempted forced entry

Key Features:
- Completely surface-mounted - no frame cutting required
- Accommodates 1/2" to 3/4" (13mm - 19mm) latch projection
- Mounting spacer included to provide enhanced latch engagement
- Stainless steel ensures superior strength and creates a sleek aesthetic design
- Horizontal adjustment ensures proper latch positioning to compensate for door misalignment - up to 1/4" (6.4mm)
- Conventional keeper design (one moving part)- promotes even load distribution
- Plug-in wire connectors
- Lockdown holes for secure mount
- HEX socket head cap screws for added support
- Installation tool included (HEX key)
- Non-handed (featuring horizontal solenoid design)
- 1/16" (1.5mm) mounting spacer for additional latch engagement included
- 500mA Field-Selectable 12/24VDC & 12-24VAC (Max at 12VDC)
- 1,500lbf Static 70ft-lb Dynamic
- 250,000 Cycles
- Fail-Secure

Specifications:
- Energy: 500mA Field-Selectable 12/24VDC & 12-24VAC (Max at 12VDC)
- Strength: 1,500lbf Static 70ft-lb Dynamic
- Endurance: 250,000 Cycles
- Mode: Fail-Secure
- Dimensions (WxHxD): 1.75 x 9 x 0.75 inches
