CEM Paint Thickness Gauge,Car Boat Coating Tester with Calibration Plates&Battery,Fe/NFe Automatic Recognition Portable Digital Thickness Meter Detector,Backlight LCD Display,Auto Power Off&Lanyard

KWD 12.500
Brand
CEM
Weight
110 g
– 1 +

Special Features

  • Calibration Function: The paint thickness gauge is pre-calibrated at the factory and can be recalibrated if needed. It offers multiple calibration methods and includes one steel and one aluminum substrate, along with several calibration standard foils. This setup enhances ease of use and improves measurement accuracy

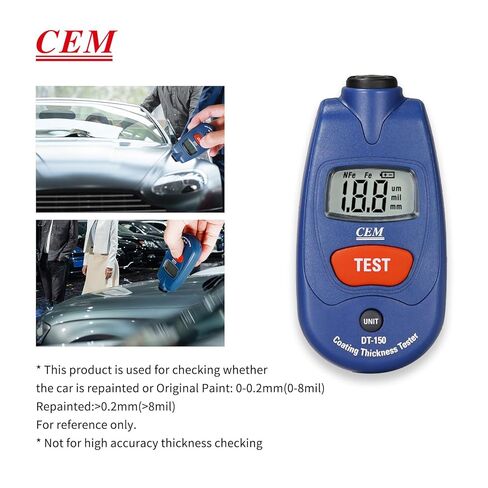

  • Measuring Principle: The paint gauge thickness meter employs electromagnetic induction (F probe) and eddy current (NF probe) principles, allowing it to automatically detect substrate types such as ferrous metals (like iron and steel) and non-ferrous metals (like aluminum, copper,and zinc).This device is used to measure various coatings, including paint layers,varnish layers, anodized layers,enamel layers,plated layers,plastics,powder coatings, ceramic coatings and is ready to use right out of the box.It is commonly used for measuring paint thickness on various parts of vehicle bodies, evaluating the uniformity of paint,and checking for signs of past accident repairs or repaints on used cars
  • Stand Support: The stand on the back of the paint thickness meter conveniently supports the device, allowing users to free their hands during testing. This feature is especially useful when multiple measurements or data recording is required. The stand also improves measurement stability, reducing data deviation caused by hand movement, thereby enhancing measurement accuracy
  • Easy-to-Read Display: This paint depth gauge is equipped with a high-contrast backlit LCD display, ensuring easy reading even in low-light conditions. The backlight design makes the values clearer. The large LCD high-definition display greatly enhances the reading experience, making it easy to read and featuring a battery level indicator
  • Battery Life: The paint thickness gauge features a built-in battery with long-lasting power, significantly reducing the need for frequent battery replacements. The automatic shut-off function conserves power further, extending the device's lifespan
  • Lightweight and Portable with Wrist Strap: The car paint tester is lightweight and comfortable to hold, equipped with a wrist strap for easy portability and secure handling. It can be worn on the wrist to prevent loss and reduce the risk of accidental drops during use
  • Ease of Operation: The coating thickness gauge is simple to operate; just turn on the device and press the probe against the object to be measured. The instrument will automatically complete all operations, including detecting the substrate type, and provide readings almost instantly

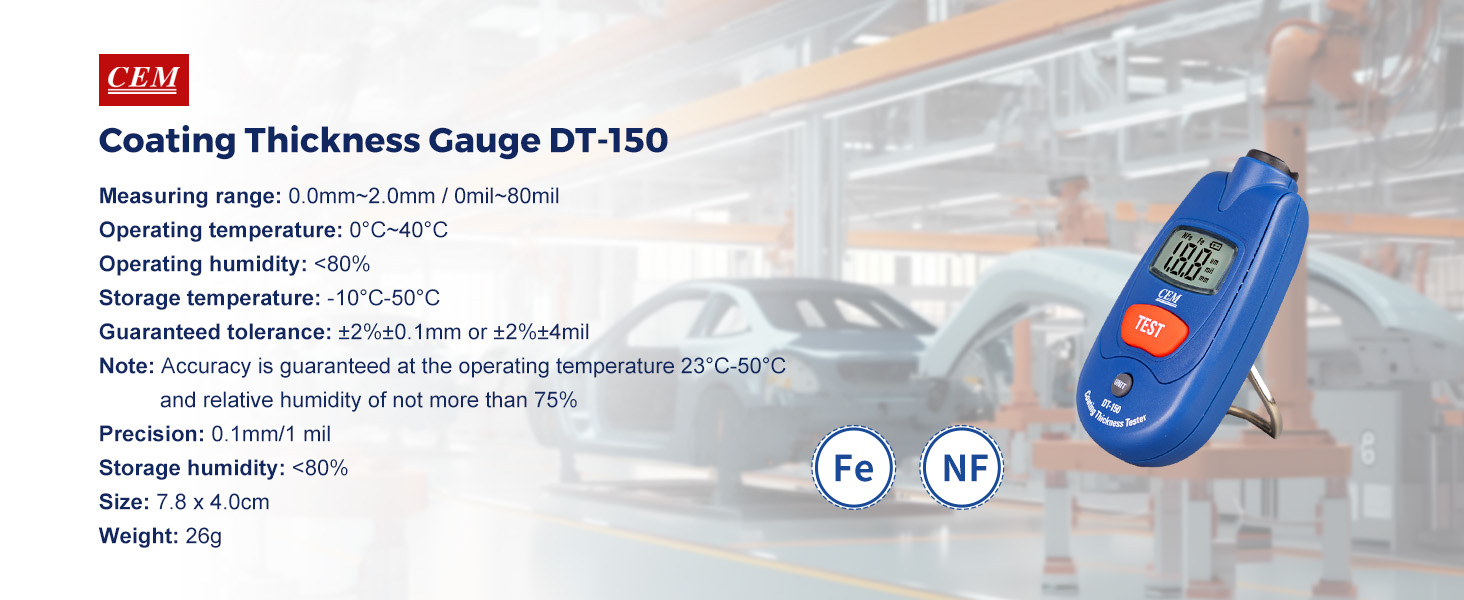

  • Measurement Range and Accuracy: The thickness gauge has a measurement range of 0 mil to 80 mil with a resolution as high as 0.1 mil. It supports unit switching between mm and mil, enabling quick and accurate measurements on surfaces of any shape, including concave, rough, and convex surfaces
  • The coating thickness gauge is a versatile instrument widely used across industries, including the used car market, manufacturing, metal processing, construction fire protection, marine applications, and home use. It ensures coating quality, controls standards, reduces waste, and improves efficiency. This gauge detects thickness on vehicles, machinery, transparent varnish layers, anodized coatings on aluminum, metal coatings on steel, plastic, epoxy resin, powder coatings, and high-temperature ceramics. It also measures fireproof coatings on steel structures and anti-corrosive coatings on ships, promoting durability and longevity in demanding environments

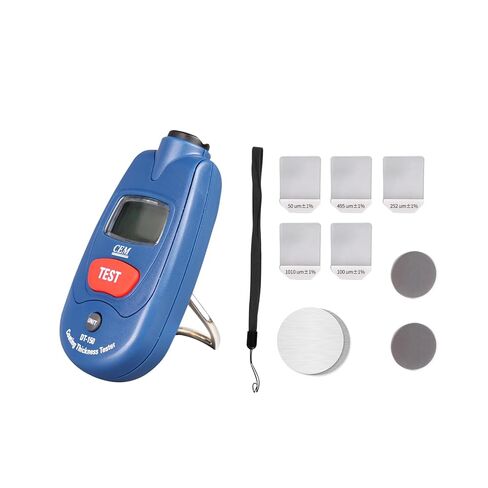

  • Complete Accessories: You will receive a coating thickness gauge, battery, aluminum and iron calibration plates, and 5 calibration foils
