CZL-611RD Technical Parameters

1. Range: 10kg
2. Zero point output: -0.15 ± 0.05mVN
3. Output sensitivity: 1.0 ± 0.1mVN
4. Output impedance: 1000 ± 10 ohms
5. Nonlinear: 0.03% 6F S
6. Four corner error: 0.0596F S
7. Lag: 0.0396F S
8. Temperature sensitivity drift: 0.039% 6F S/10℃
9. Repeatability: 0.0396F S
10. Zero temperature drift: 0.39% 6F S/10℃
11. Creep: 0.0596F S/3min
12. Product size: 75x12.7x12.7mm

Principle of use：
A load cell is actually a device that converts a mass signal into a measurable electrical signal output.
The load cell consists of an elastomer (deformation block) and a strain gauge.
Under the load of a heavy object, the elastomer undergoes deformation,
which deforms the strain gauge pasted on the surface of the elastomer,
and the weight of the specific object is obtained by processing the sensed value of the strain gauge.
Application wiring description
Power supply positive (E+) red, power supply negative (E-) black, signal positive (S+) white,
signal negative (S-) green Note: If there is a negative situation when installing, please adjust the signal line to the right!

Specification：

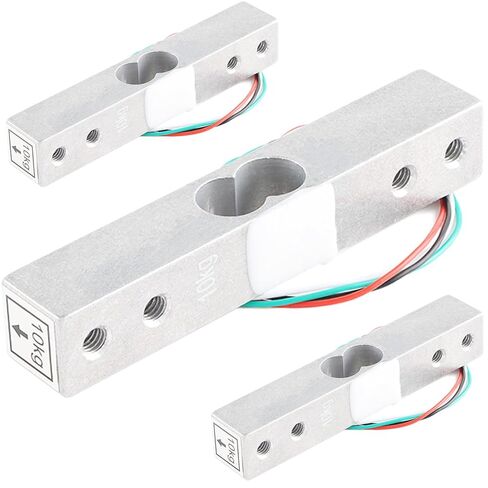

The elastomer (deformation block) is provided with strain gauges on both sides; the cross-section of the elastomer is square,
two intersecting through holes are provided on one side of the elastomer,
strain gauges are provided on the other two sides of the elastomer,
and the elastomer is provided with mounting threaded holes on both ends of the strain gauges,
and the two intersecting through holes are of the same diameter and located in the middle of the deformation block.
