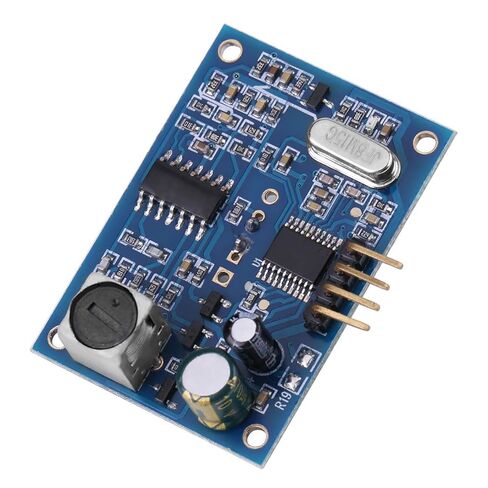

Integrated Ultrasonic Module Distance Measuring Transducer Sensor Waterproof for Arduino

KWD 4.500
Brand
DUTTY
Category
Sensors
Weight
101 g
– 1 +

Special Features

  • With a waterproof sealed emitter. This sensor is suitable for outdoor applications such as car reversing sensors, security alarms, industrial inspection, etc.
  • Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions. Please note that the device is waterproof, but it couldn't work underwater.
  • Working voltage:DC 5V, Static current:5mA, Total current work: 30mA. Working range: 25cm-4M, Working frequency: 40KHZ, Detecting angle: 70 degree.
  • The module has a variety of modes that can be modified manually, suitable for testing and teaching experiments in different occasions.
  • Application: Horizontal distance messurement,Obstacle avoidance, automatic control, Traffic control, Security, industrial control.

Description

Performance Description:
Electrical parameters: JSN-SR04T

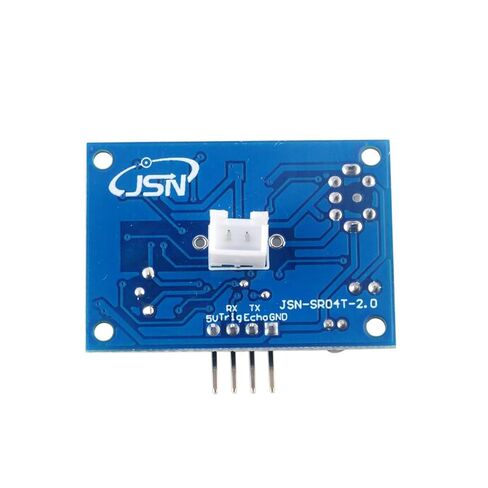

Wiring: + 5V (positive power supply)
Trig (control side) RX
Echo (the receiver) TX
GND (negative)
Module size: 41mm * 28.5mm
Resolution: about 0.5cm
Angle: less than 50 degrees
Working temperature: -10 ~ 70 ℃
Storage temperature: -20 ~ 80 ℃
Package Included:
1* JSN-SR04T Ultrasonic Distance Measuring Transducer Sensor Waterproof
