R8 FMB22 7/16-20 Shank Face End Mill Arbor and 1.97"/50mm Cutting Diameter 4 Flute EMR 5R50-22-4T CNC Face End Milling Shell Cutter with 10Pcs RPMW1003 Round Carbide Inserts and T15 Wrench

Special Features

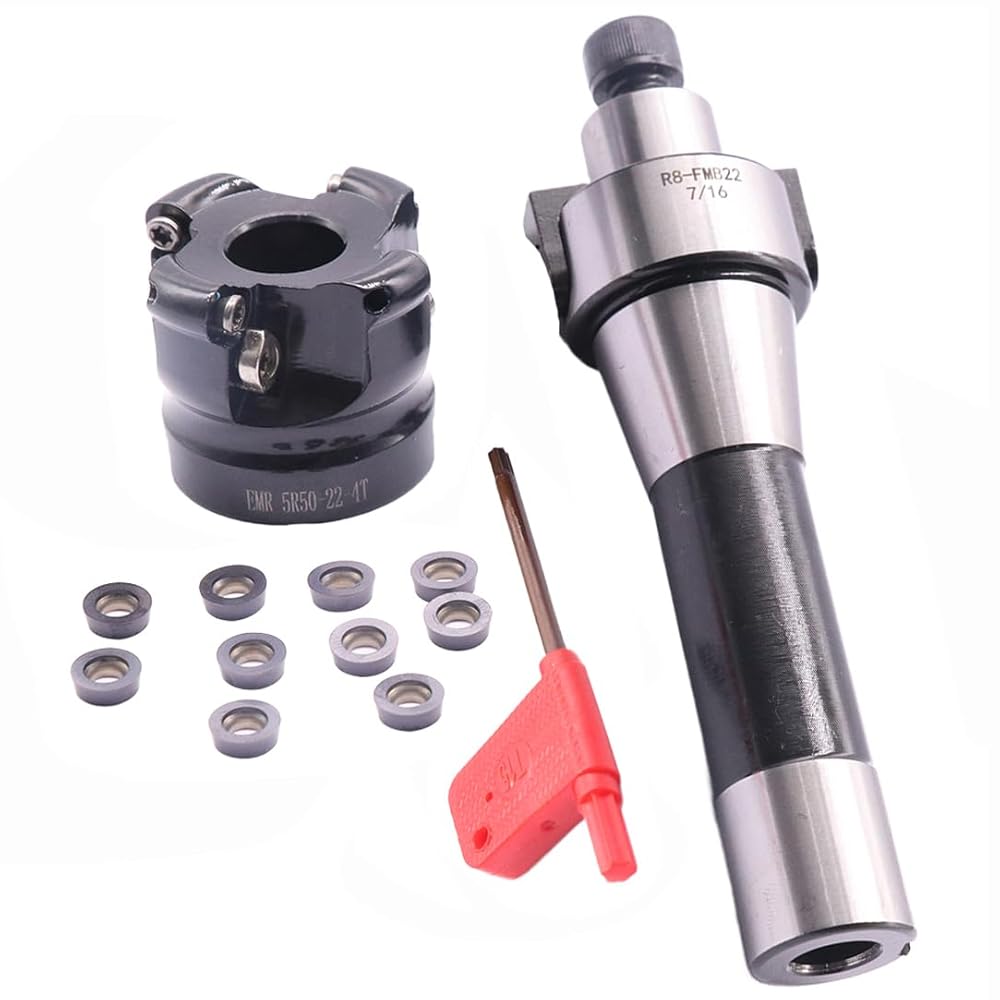

Set includes: 1 x R8 FMB22 Arbor, 1 x EMR 5R50-22-4T Cutter, 1 x T15 Wrench, 10 x RPMW1003 Carbide Inserts as pictured.

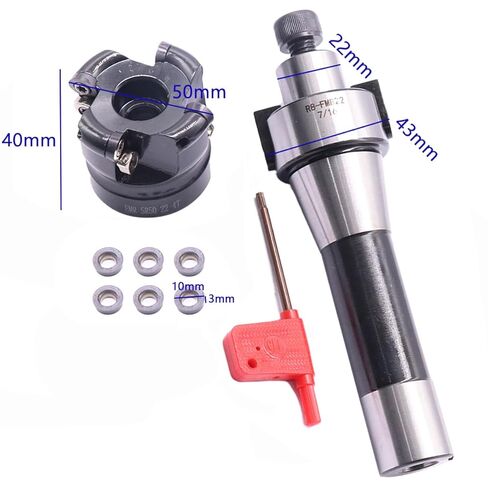

R8 FMB22 Arbor: 7/16-20 Draw Bar Threads, 22mm/0.87In Arbor Hole Diameter.
EMR 5R50-22-4T Face End Mill Cutter: 50mm/1.97in Cutting Diameter, 6 Flutes, 22mm/0.87In Bore Diameter.
RPMW1003 Carbide Insert: Blade diameter: 0.39" (10mm), Blade thickness: 0.125"(3.18mm). Cutting corner: 11 degrees, for steel with hardness below HRC40 degrees. Applicable to: forging steel, bearing steel, spring steel, die steel, 20CrMoTi, 40CrMo, A3 steel, 45# steel, Q235, stainless steel, etc.
Function: Machining planes, grooves, and cutting off workpieces on milling machines. Milling speed and processing efficiency are high, and the surface quality of the processing is also good. It is possible to add T parts with hard skin and hardened layers, which has obvious advantages in improving product quality and processing efficiency.
High Quality: Made of fine quality steel, good permeability,sturdiness and durability, resistance to multiple impacts,fine durability. Smooth surface, comfortable feeling, nice appearance.
Good Performance: Milling rotary tool is screw locking, the chip large space, good chip removal, edge can fit a variety of materials.
Widely Application: This shank face mill arbor set is designed for shoulder milling, face milling and slotting, mainly used for CNC machining centers, CNC engraving machines. It can also be installed on an ordinary milling machine to process some harder and less complex heat-treated materials.

Description

Specification:
Used for plate cutting, carbide insert used for steel meterial.
Body made of high quality steel, durable

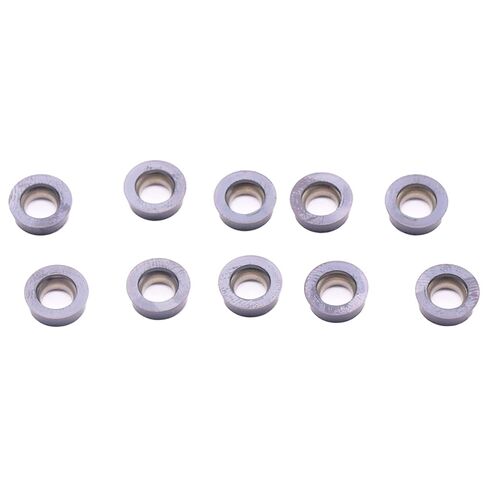

Carbide Insert
Material: cemented carbide
Model: RPMW1003

Face Mill Arbor
Model: R8-FMB22
Bore Diameter: 0.87In/22mm
Draw Bar Threads: 7/16-20

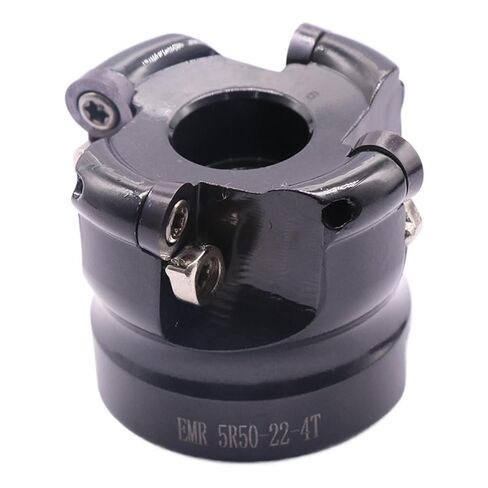

Milling Cutter
Model: EMR 5R50-22-4T
Flutes: 4 Flute
Cutting Diameter: 1.97in/50mm

Features:
EMR milling cutter, suitable for machining flat surface
indexable milling cutter, matching with standard RPMW1003 insert
Made of steel with high hardness and strength to ensure long service life
High vibration-absorbing performance, improve the surface finish of the workpiece
Set including R8 face mill arbor with 22mm bore for holding milling cutter
Set including 10pcs RPMW1003 inserts, great for shoulder milling, face milling and slotting, can fit a variety of materials

Package included:
1 x R8 FMB22 Arbor
1 x EMR 5R50-22-4T

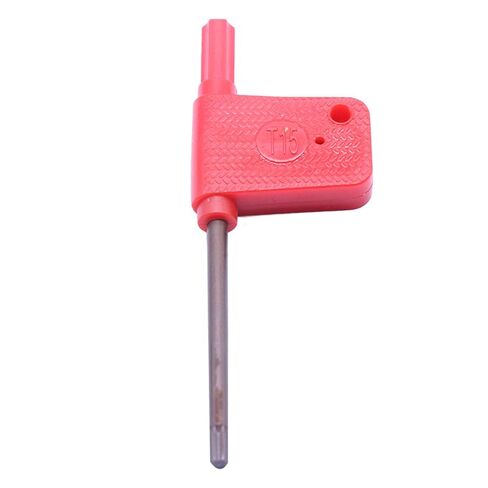

1 x T15 Wrench
10 x RPMW1003 Carbide Inserts as pictured
