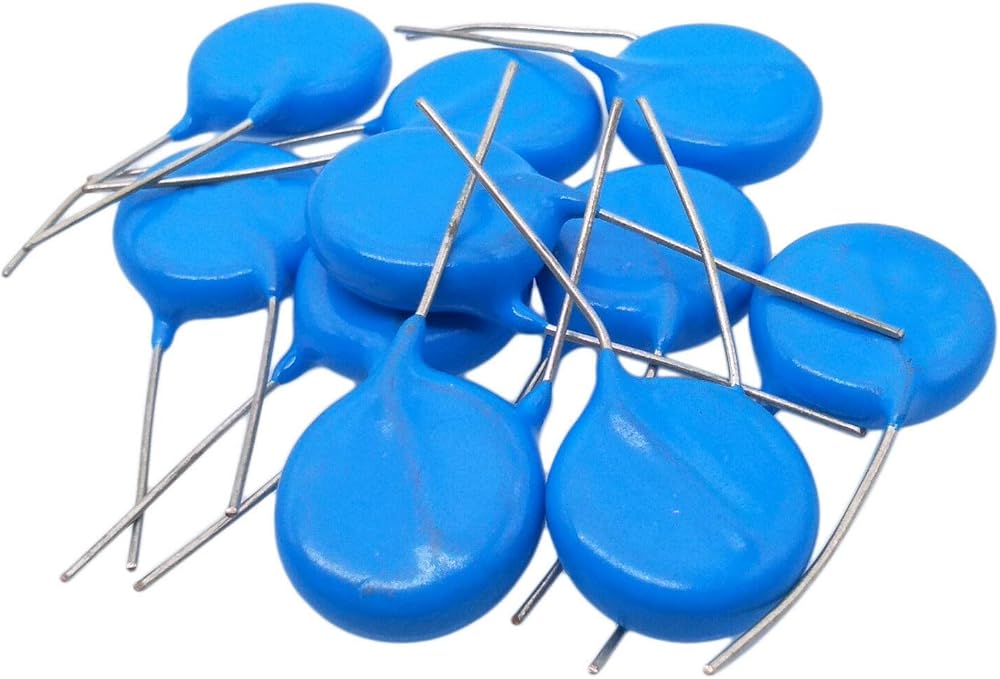

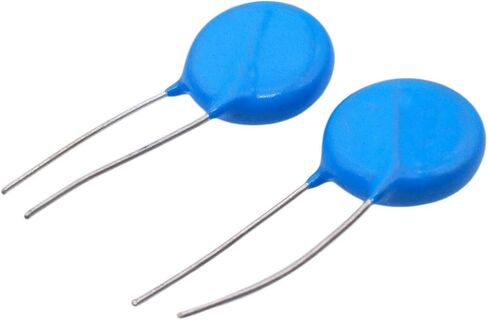

10pcs 14D681K Varistor Resistor 14mm 680V UL

KWD 3.500
Weight
24 g
– 1 +

Special Features

  • 1.Specific epoxy coated disc construction with radial leads, long life use.
  • 2.The Voltage Dependent Resistor is designed to protect equipment against transient voltage spikes.
  • 3.Connected directly across the power supply rails. When a voltage spike is encounted, the varistor rapidly changes impedance from its normal high impedance state to a very low level in standby mode.
  • 4.Can permit absorbtion of the unwanted high voltage and protect voltage sensitive components and circuits from damage.
  • 5.Widely used in power supply, industrial equipment, lighting products, automotive electronics and home appliance etc.

Description

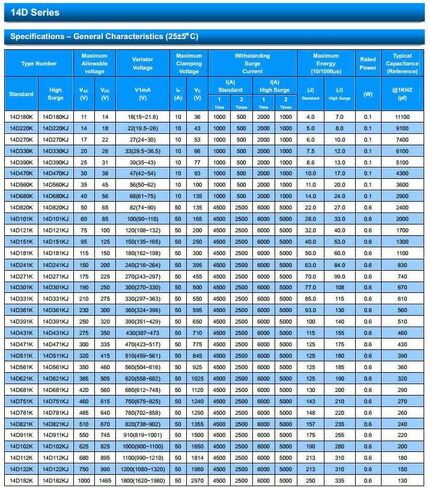

Specifications:
Model: 14D681K
Max. Allowable Voltage: AC 420V; DC 560V
Varistor Voltage: 680V ±10%
Max. Clamping Voltage (8/20 μS): 1120V; Max. Clamping Current (8/20 μS): 50A
Max. Peak Current (8/20 μS) : 4500A
Rated Power: 0.6W; Max. Energy: 130J
Typical Capacitance : 432pF (1kHz)
Lead Type: Straight

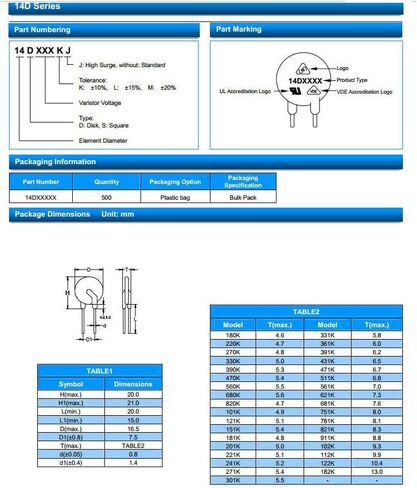

Lead Size: 24 x 0.7mm / 0.94" x 0.03" (L*D); Lead Spacing : 7.5mm / 0.3"
Body Size: 15 x 4mm / 0.6" x 0.16" (D*T)
Temperature Coefficient: PTC; Fit Climate Type: 40/85/56
Material: Epoxy, ZnO; Color: Blue
Package Content: 100(+/-2%) x Voltage Dependent Resistors
