5 Band Sound Equalizer, Bluetooth, Stereo Video, 3.5mm AUX - Input, Video, 3.5mm AUX - Output, EQ Preamp Equalizer with Vintage VU Meter for Recording, Streaming, Podcasting

KWD 49
Brand
Sanpyl
Weight
0.9 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Good Performance: This 5 band EQ preamp equalizer uses a full aluminium alloy case and aluminium knurled knobs with good shielding performance, and all I/O interfaces are gold plated to ensure sleek of the original sound and minimise loss.
  • Bypass Design: This sound 5 band equalizer adopts a bypass design, the bypass mode turns off the EQ preamplification, the sound is directly output from IN to OUT without any processing, which is convenient to enjoy the original sound. There is also a balance control to compensate for the left and right channels of all outputs, preventing the soundstage positioning from being off centre.
  • Vintage VU Meter: This Bluetooth EQ preamplifier features large VU meters (45mm) driven by a dedicated VU driver chip, which accurately displays the level of the sound in real time and dynamically decorates the sound environment for more visual and audible effects.
  • Rich Band Control: This sound digital equalizador has rich band control (100Hz, 400Hz, 800Hz, 4KHz, 10KHz), each band is processed independently by an op amp, which compensates for the defects of the speakers and the soundstage by adjusting the 5 bands of high, middle and low frequencies to improve a variety of sound sources.
  • Wide Application: This sound system professional equalizer has a wide range of applications, with compact size, DC 5V power supply, which is portable and easy to use in most situations, and can be used for home stereo, computer speakers, amplifiers and so on.

Description

Spec:

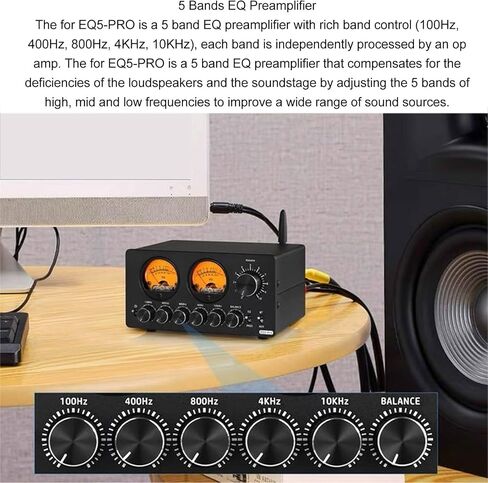

Item Type: 5 Band Bluetooth EQ Preamplifier
MOdel: EQ5-Pro
Material: Aluminium Alloy
Sound Input: Bluetooth, Stereo Video jack, 3.5mm AUX
Sound Output: Stereo Video jack, 3.5mm AUX
EQ Bands: 100Hz, 400Hz, 800Hz, 4KHz, 10KHz
Bypass Function: Supported
L/R Channel Balance Adjustment: Supported
Input Impedance: 50KQ
Output Impedance: 15Q
Frequency Response: 5Hz-20KHz
Total Harmonic Distortion: 0.003% at 1kHz
Power Interface: USB (Type C)
VU Meter Diameter: Approx. 45mm / 1.77in
Application: Home Stereo, Computer Speakers, Amplifiers

How to Use:
Follow the instructions to use.

PackageList:
1 x 5 Band Bluetooth EQ Preamplifier
1 x Antenna
1 x USB Data Cable (Type C)
1 x Manual
