COMeap Molex Power Cable for EVGA PSUs, 6 Pin to 3X 4 Pin Molex Hard Drive Adapter Splitter for Some Specific Types of EVGA Power Supply 20-in(50cm)

KWD 7

Brand
COMeap
Weight
50 g
ColorMolex Port
1 +

Special Features

  • 『Compatibility』Compatible with the Type1 pinout of EVGA modular PSUs including G1/G1+/G2/G3/G5/GS/GA/GM, B2/B2/BQ, P2/1000PS/T2, SuperNOVA nex650g/ 450GM/550GM;(Note: Do not work with 1000PS/850GS/1050GS and semi modular power supply such as EVGA GQ series including: 650GQ/750GQ/850GQ/1000GQ.)
  • 『Note』The cable was only designed for the brand and model as listed in the 1st Point. Using the cable with unsupported PSUs will definitely damage the PSUs, hard drives or other devices. Please do not use with any makes or models not listed in our compatibility list. Please carefully check the compatible types before purchasing and contact us if you are not sure if it supports your power supply;
  • 『6P - 15P SATA』6 pin port to plug into EVGA PSU, 15 Pin SATA port to plug into hard drive, riser card or other devices with SATA port;(Note:There is no guarantee if you use this cable for mining.)

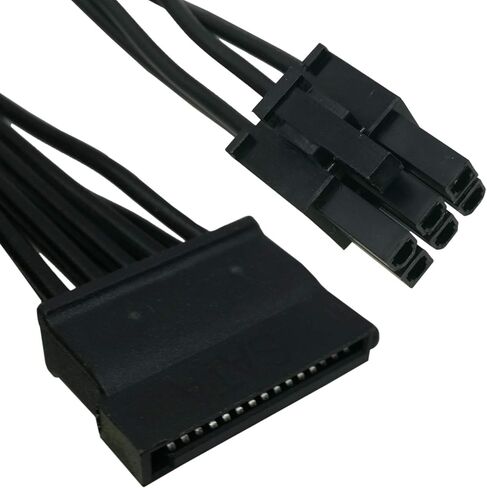

  • 『Connector』Connector A: 1x 6 pin male (only for some specific types of EVGA PSU as listed in the 1st point), Connector B: 3x 15 pin SATA female;

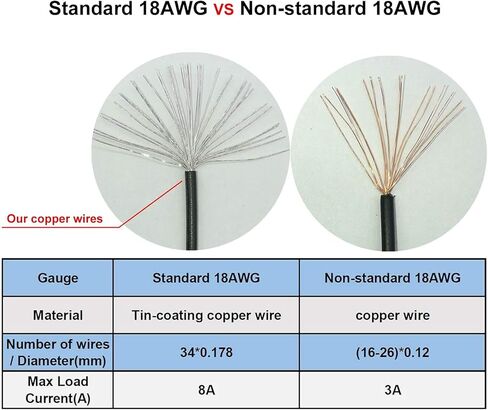

  • 『Parameter』Gauge: 1007-18AWG(standard tin-coating copper wire), Length(including connectors): main 20inches(50cm)+secondary 6inches(15cm)+thridary 6inches(15cm) ,Between 2 SATA: 6 inches(15cm), Quantity: 1pcs, Self-adhesive tape*1pcs;

Description

Features:

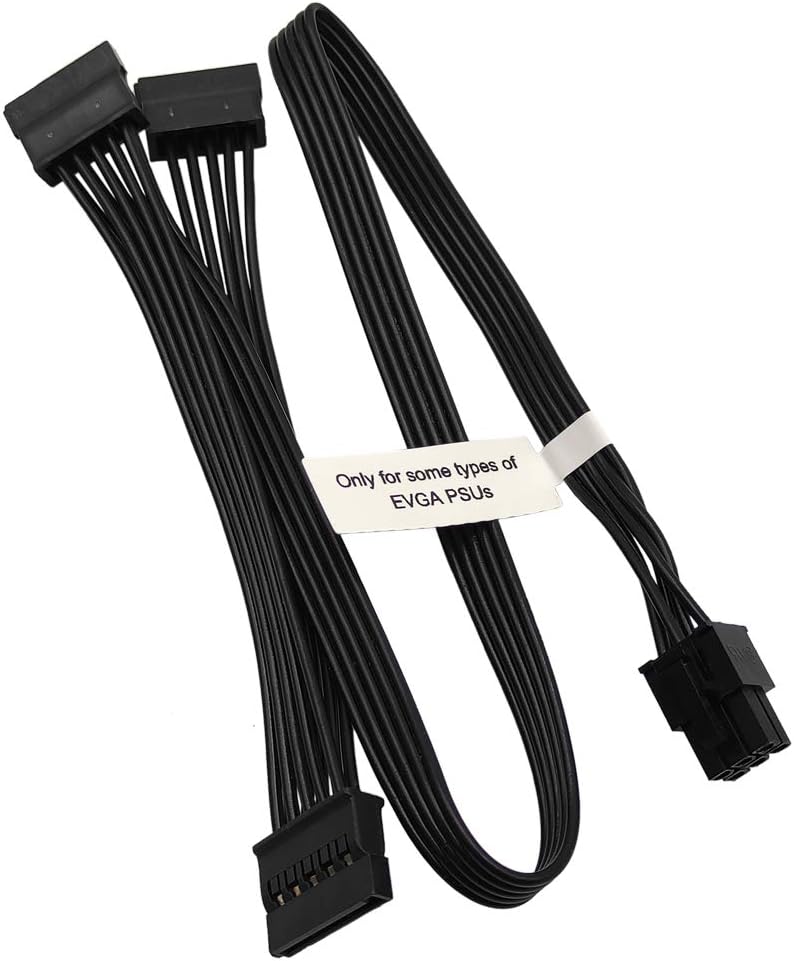

The COMeap EVGA 6 Pin to 3x 15 Pin SATA hard drive power supply cable is used to connect EVGA PSU to riser card or hard drive.

Support:

Only EVGA PSUs such as:

SuperNOVA G1(650G1/750G1/1000G1), SuperNOVA G1+(650G1+/750G1+/850G1+/1000G1+), GS(650GS/850GS/1000GS/1050GS);

SuperNOVA G2(650G2/750G2/850G2/1000G2/1300G2/1600G2), SuperNOVA G3(550G3/650G3/750G3/850G3/1000G3) ;

SuperNOVA G5(650/750/850/1000), GA(550/650/750/850), GM(550/650/750/850);

SuperNOVA B2(750B2/850B2), B3(450B3/550B3/650B3/750B3/850B3), BQ 650;

SuperNOVA P2(650P2/750P2/850P2/1000P2/1200P2/1600P2), SuperNOVA 1000PS;

SuperNOVA T2(750T2/850T2/1000T2/1600T2), SuperNOVA nex650g, Supernova 450GM/550GM;

Please note that it is not compatible with semi modular power supply such as EVGA GQ series including: 650GQ/750GQ/850GQ/1000GQ.

Specification:

Cable Length: main 20inches(50cm)+secondary 6inches(15cm)+thridary 6inches(15cm) ,Between 2 SATA: 6 inches(15cm)

Connectors: 1x 6 pin male, 3x SATA 15 pin female

Including:

EVGA 6 Pin to 3x 15 Pin SATA hard drive power supply cable*1pcs;

Self-adhesive tape*1pcs;

Note: 1.This cable is just allowed to connect 2pcs riser cards at most. It will be damaged or burned at any time for connecting 3pcs riser cards;

2.This cable was only designed for some specific types of EVGA PSUs, not compatible with other brand PSUs. If you use other brand PSUs, it will burn or damage the hard drive. Please check the points and desription about the compatible types;

3.It is not compatible with semi modular EVGA power supply such as EVGA 1000GQ. We have another item to work with EVGA GQ series PSUs, the product link is https://www.amazon.com/dp/B08CT7FC1K?ref=myi_title_dp;
