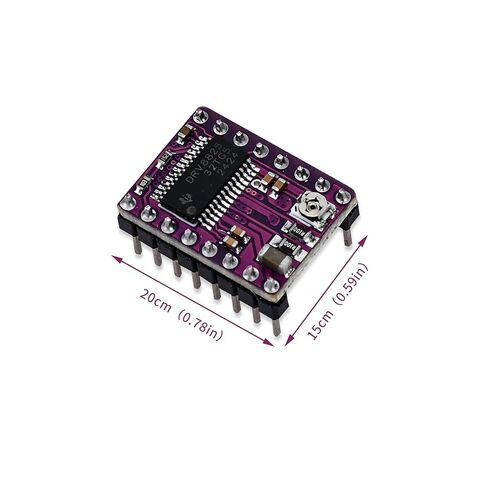

What is DRV8825 Stepper Motor Driver Module？

The DRV8825 stepper motor driver carrier is a breakout board for DRV8825 microstepping bipolar stepper motor driver.
The module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver board, so it can be used as a higher-performance drop-in replacement for those boards in many applications.
The DRV8825 features adjustable current limiting, overcurrent and overtemperature protection, and six microstep resolutions (down to 1/32-step)
It operates from 8.2 ¨C 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).

Features:

✔Simple step and direction control interface.

✔Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step.

✔Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor rated voltage to achieve higher step rates.

✔45 V maximum supply voltage.

✔Built-in regulator (no external logic voltage supply needed).

✔Can interface directly with 3.3 V and 5 V systems.

✔Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout.

✔Short-to-ground and shorted-load protection.

✔4-layer, 2 oz copper PCB for improved heat dissipation.

✔Exposed solderable ground pad below the driver IC on the bottom of the PCB.

✔Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects (see the bottom of this page for more information).

Package Included:

6x DRV8825 Stepper Motor Driver Board with Heat Sink
